Cost-effective BZT52C2V4 Surface Mount Zener Diode SOD-123 Manufacturer

2.4V|2.2V|2.6V|5A|50μA@1V|500mW|SOD-123|Zener Diode|PD(mW),VZTyp（V）,VZMin(V),VZMax(V),IZT(mA),IR(uA),Package|Zener Diode|

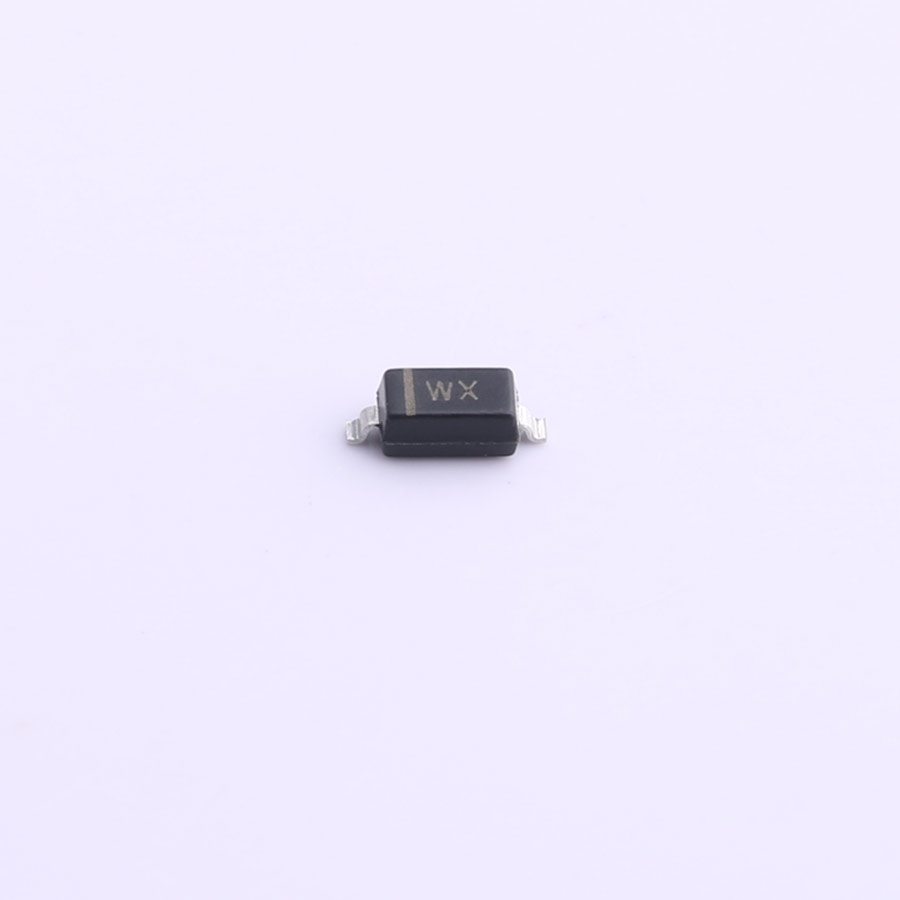

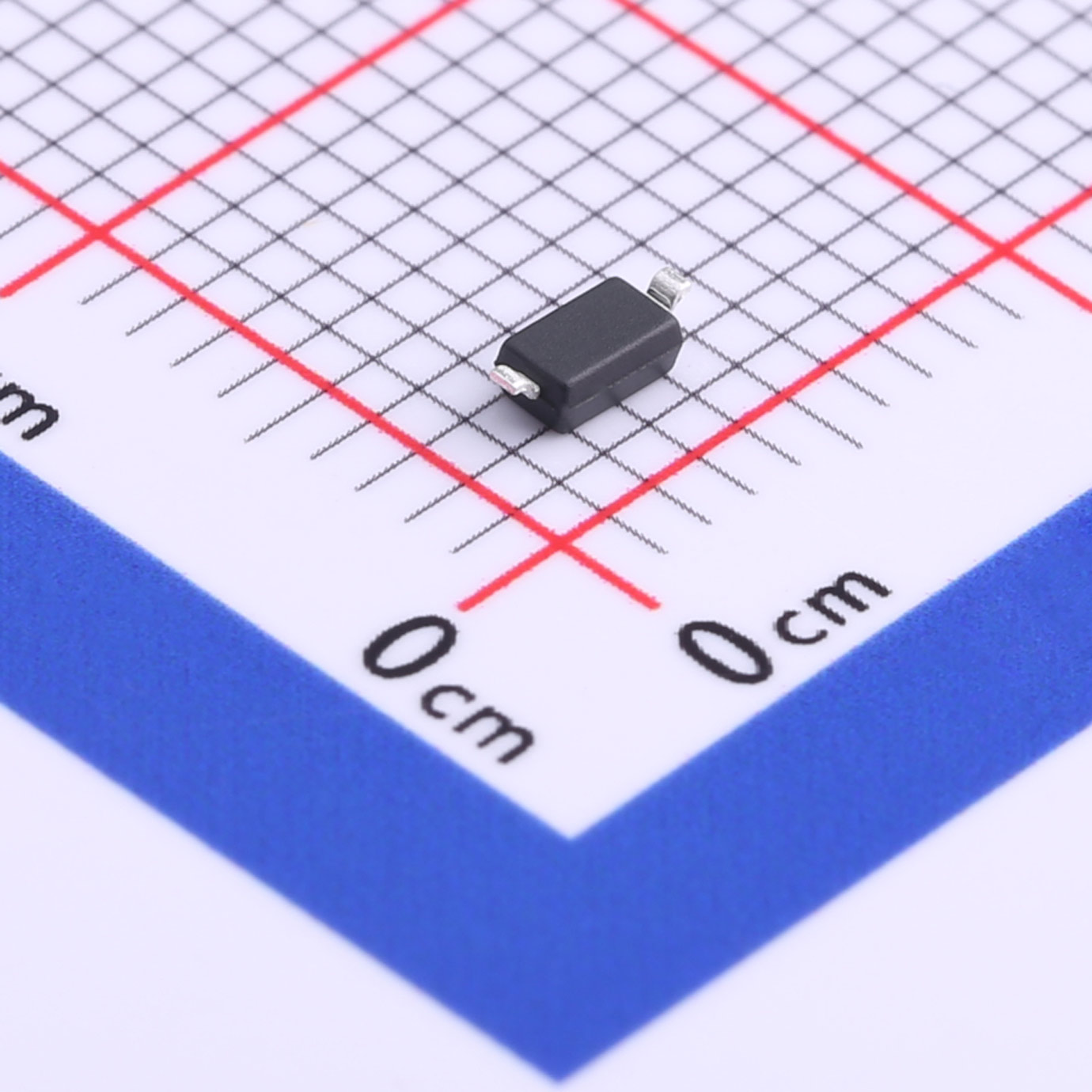

BZT52C2V4 Surface Mount Zener Diode SOD-123

Download Datasheet Online Consultation

Surface mount zener diode


Features

  • Planar Die Construction

  • 500mW Power Dissipation on Ceramic PCB

  • General Purpose,Medium Current

  • Ideally Suited for Automated Assembly Processes


Mechanical Data

  • Case: SOD-123 Plastic

  • UL Flammability Classification Rating 94V-0

  • Moisture Sensitivity :Level 1 per J-STD-020A

  • Terminals: Solderable per MIL-STD-202, Method 208

  • Polarity: Cathode Band




Name
Title
Description
BZT52C6V2.PDF
-
Datasheet
Support

Support



If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.

Longevity



The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
