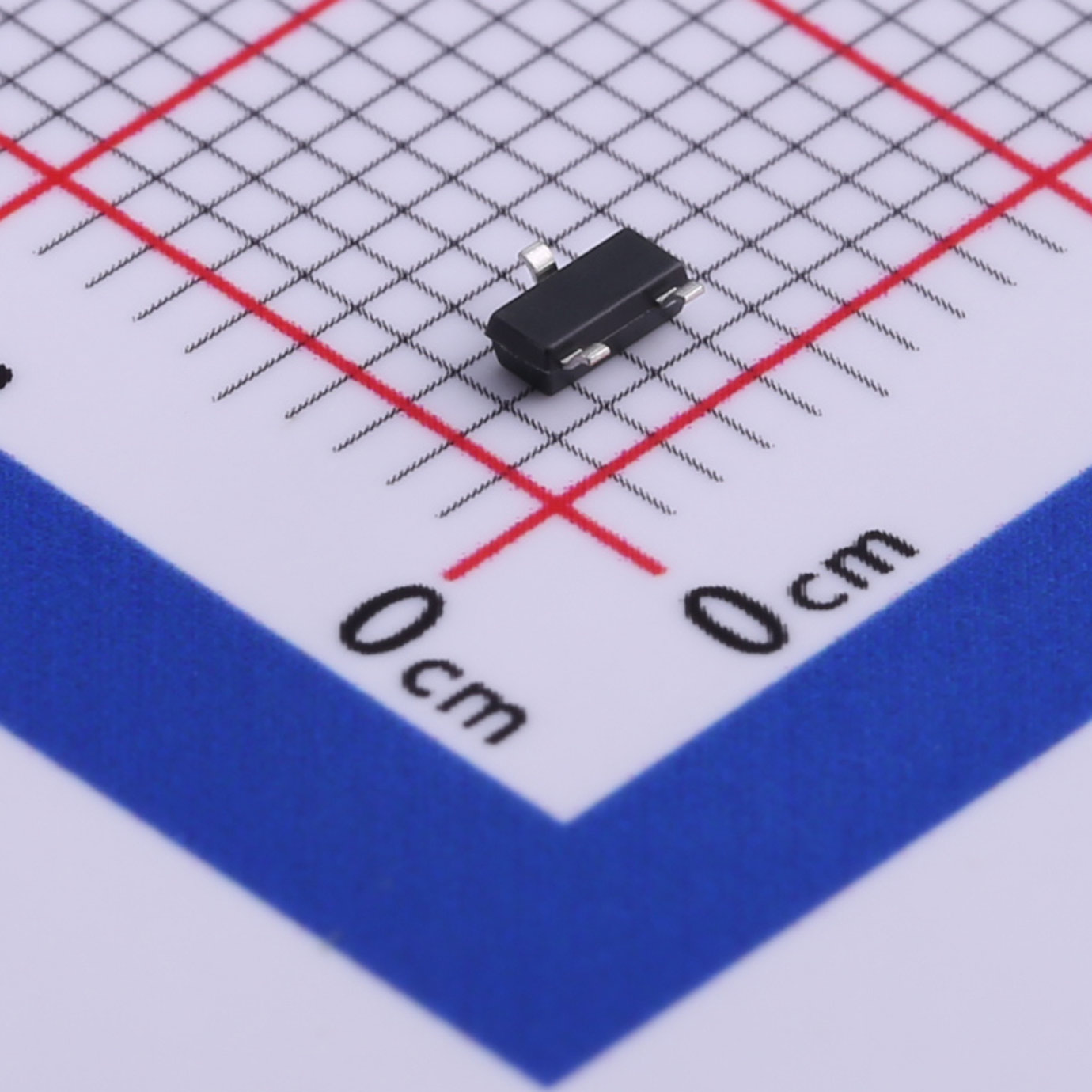

BAW56 Fast Switching Diodes SOT-23 Factory Direct
200mA|1.25V|2.5μA|6ns|SOT-23|70V|Switching Diode|Products|-,-,-,-,-,-|Product display|
The BAW56 is a set of high-performance fast switching diodes designed to provide efficient rectification and fast switching capabilities in compact electronic circuits. Encapsulated in the SOT-23 package, these diodes offer robust performance and reliability essential for a wide range of applications.
Switching Diode
Our adventage
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BAW56 is a set of high-performance fast switching diodes designed to provide efficient rectification and fast switching capabilities in compact electronic circuits. Encapsulated in the SOT-23 package, these diodes offer robust performance and reliability essential for a wide range of applications.
Features
● Fast Switching Speed
● For General Purpose Switching Applications
● High Conductance
Application
● Signal Switching: Ideal for high-speed signal switching applications in communication systems, data transmission equipment, and digital circuits.
● Voltage Clipping: Used in voltage clipping and clamping circuits to limit signal amplitude and protect downstream components.
● High-Frequency Rectification: Suitable for rectifying high-frequency signals in mixers, modulators, and RF circuits.
● Reverse Polarity Protection: Provides robust protection against reverse polarity conditions in battery-powered devices and automotive electronics.
Name
Title
Description

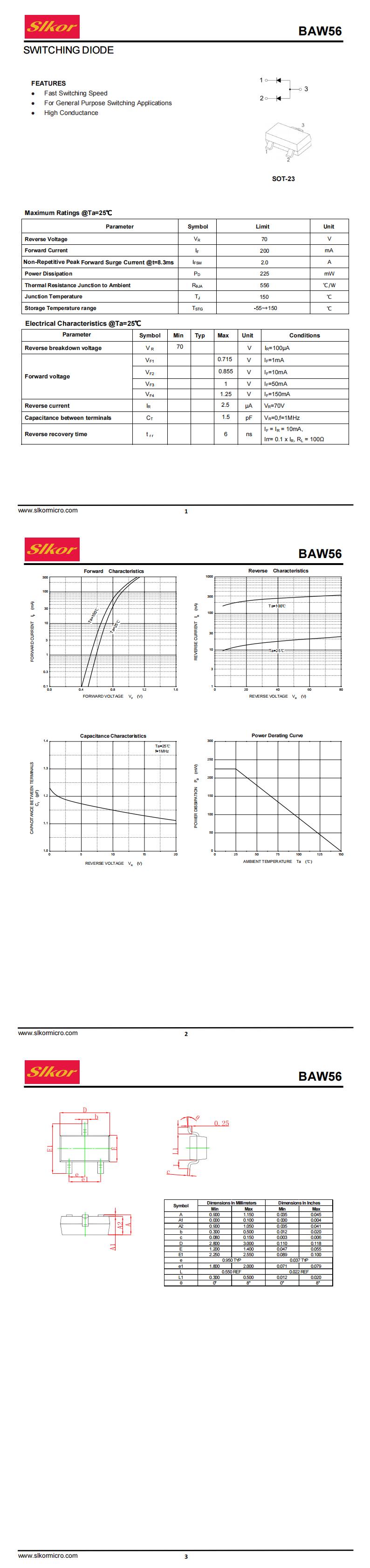

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.
