Cost-effective DSK36 Schottky Diode Rectifier SOD-123FL Manufacturer
60V|700mV@3A|500μA@60V|SOD-123FL|3A|Schottky Diode|Schottky Diode|IO,VR(V),VF(V),IR,Package|Schottky Diode|

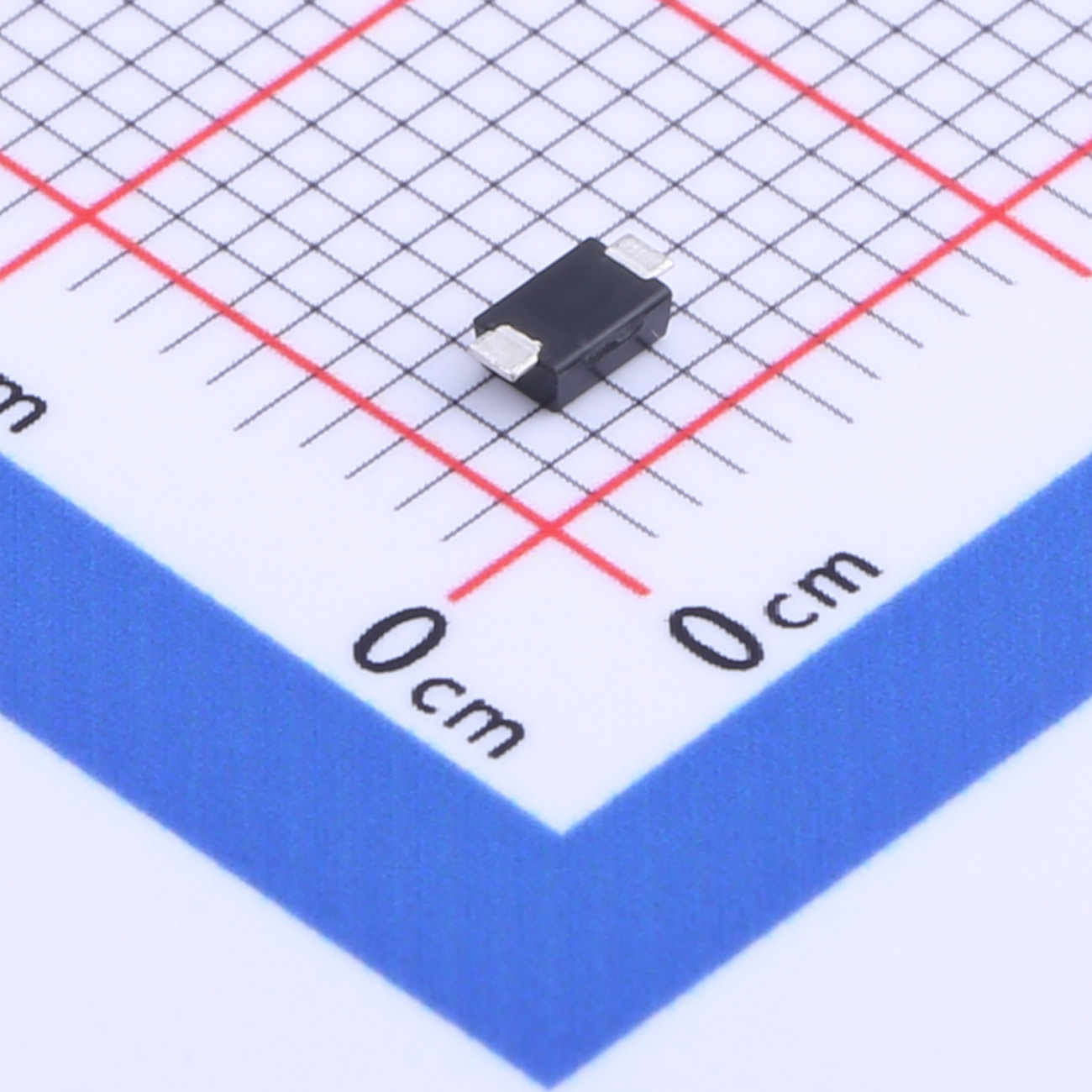

DSK36 Schottky Diode Rectifier SOD-123FL

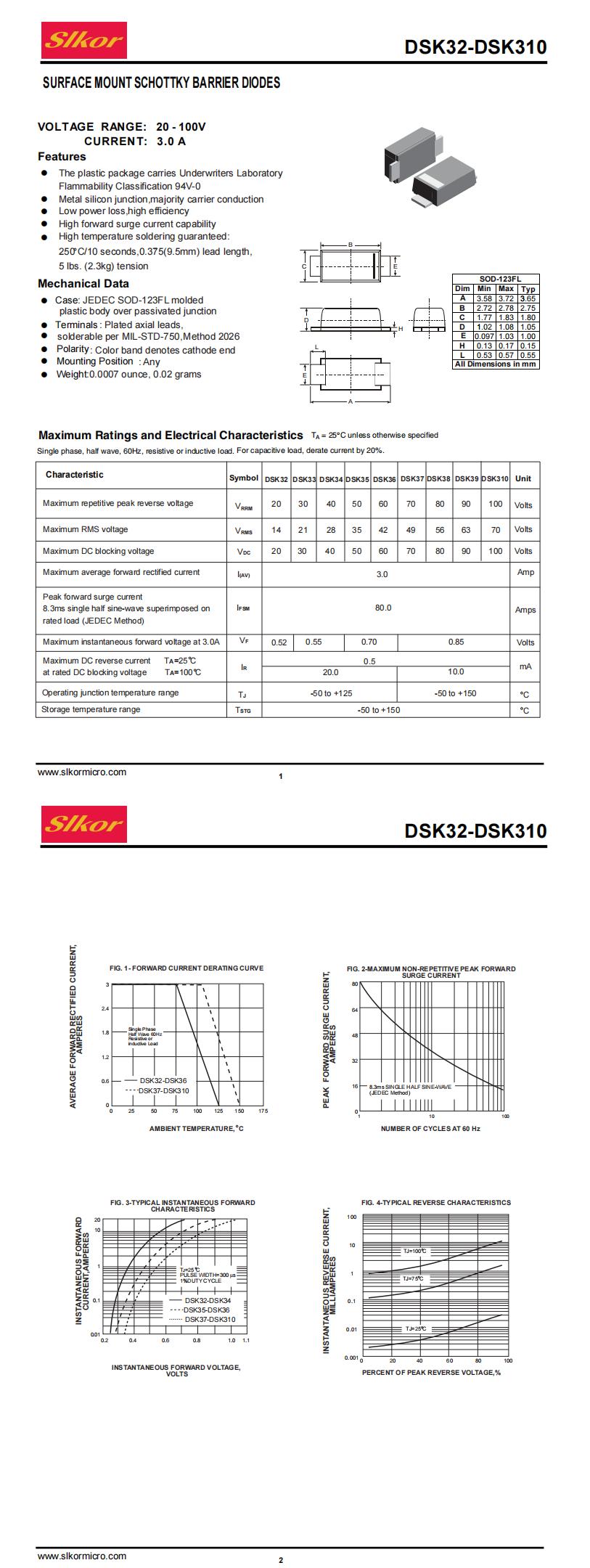

SURFACE MOUNT SCHOTTKY BARRIER DIODES
VOLTAGE RANGE:20-100V
CURRENT:3.0 A
Features
-
The plastic package camries Underwriters Laboratory
-
Flammability Classification 94V-0
-
Metal silicon junction,majority carrier conduction
-
Low power loss.high efficiency
-
High forward surge current capability
-
High temperature soldering guaranteed: 250 C/10 seconds,0.375(9.5mm)lead length, 5 Ibs.(2.3kg)tension
Mechanical Data
-
Case: JEDEC SOD-123FLmolded plastic body over passivated junction
-
Terminals: Plated axial leads solderable per MIL-STD-750, Method 2026
-
Polarity: Color band denotes cathode end
-
Mounting Position: Any
-
Weight: 0.0007 ounce.0.02 grams
