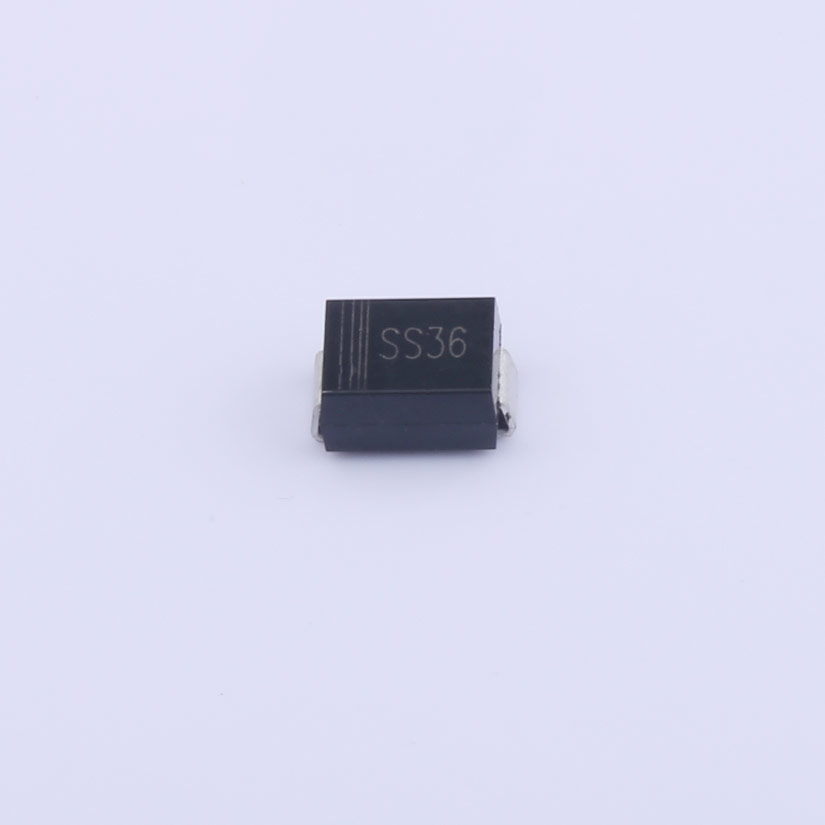

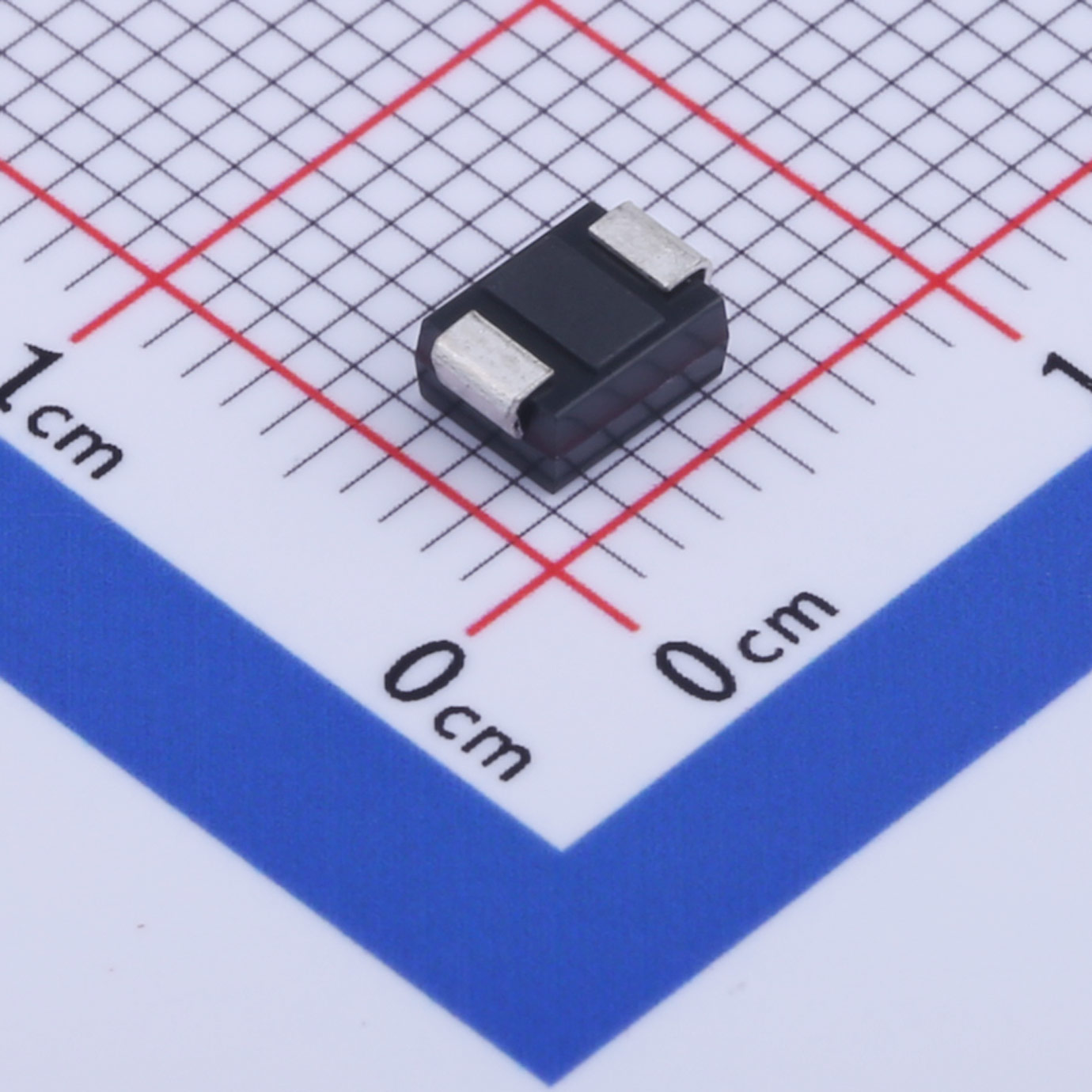

SS36B Schottky Barrier Rectifiers SMB

60V|700mV@3A|500μA@40V|SMB|3A|Schottky Diode|Products|-,-,-,-,-,-|Product display|

SS36B Schottky Barrier Rectifiers SMB

Download Datasheet Online Consultation

SURFACE MOUNT SCHOTTKY BARRIER DIODES


VOLTAGE RANGE: 20-100V

CURRENT: 3.0 A


Features

For Surface Mounted Applications

High Temperature Metallurgically Bonded Contacts

High Reliability

High Current Capability and Low VF

Submersible Temperature of 265C for 10 Seconds in Solder Bath


Mechanical Data

Case: SMB/DO-214AA.Molded Plastic

Terminals: Solder Plated,Solderable per MIL-STD-750.Method 2026

Polarity: Cathode Band or Cathode Notch

Marking: Type Number

Weight: 0.093 grams (approx.)




Name
Title
Description

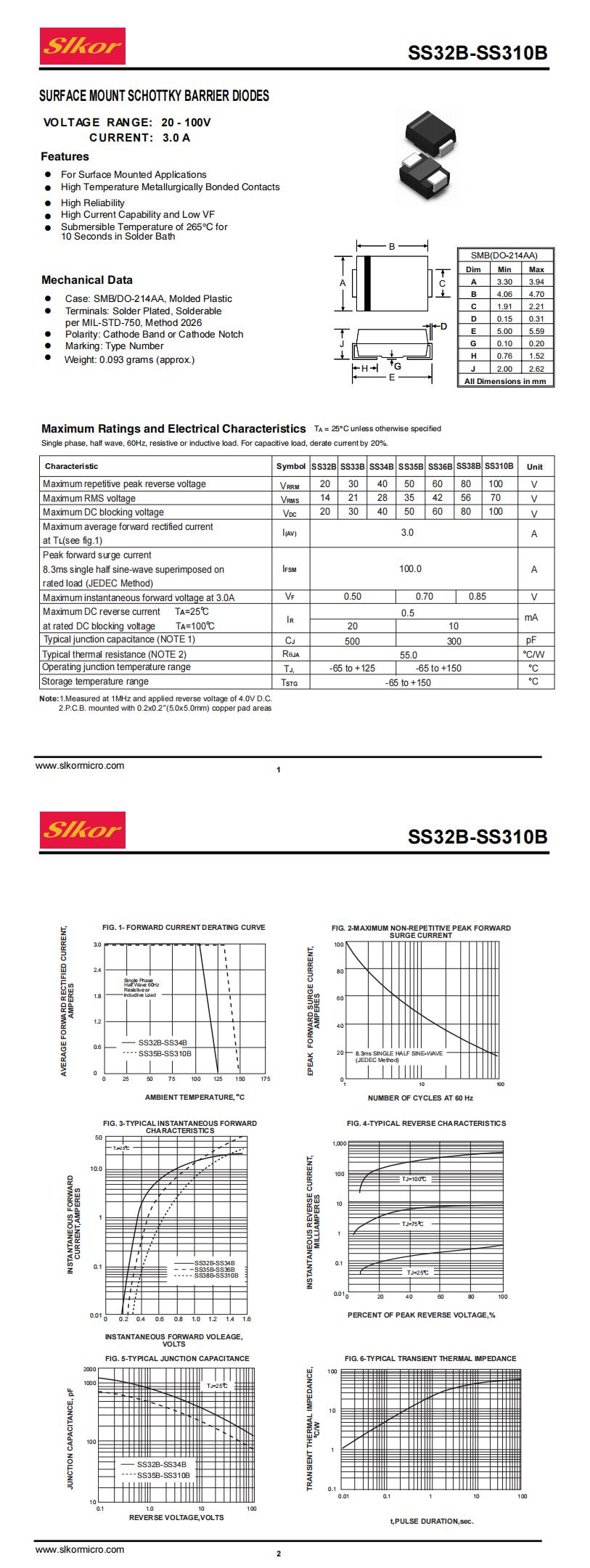

SS36B.pdf
-
Datasheet
