Home Product Categories Diodes & Transistors Diodes Schottky Diode

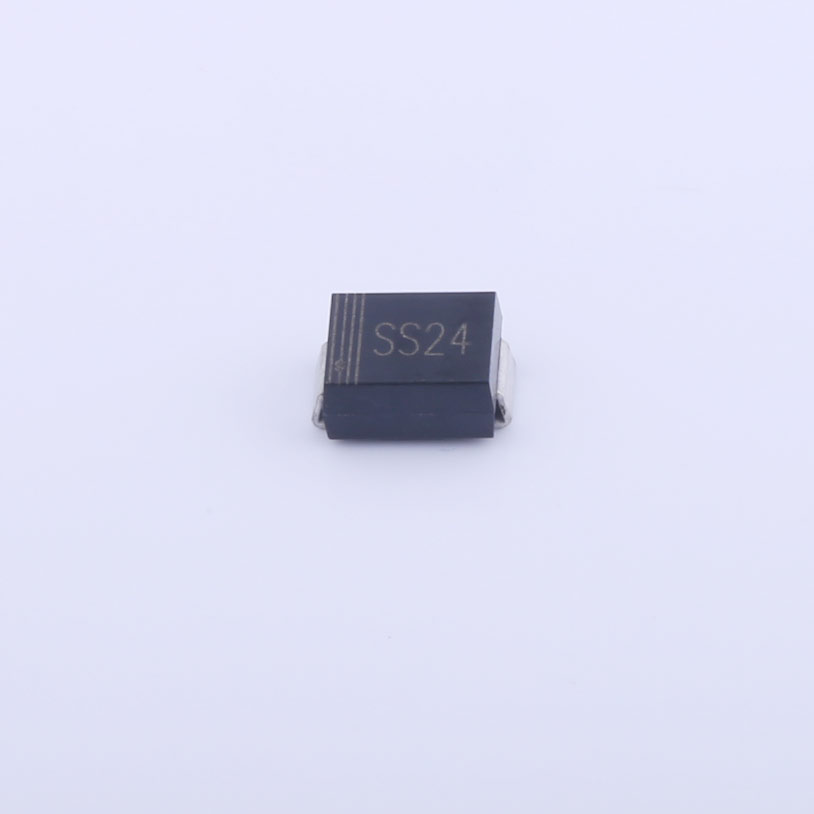

High Reliability SS24B Schottky Diodes SMB Manufacturer

40V|500mV@2A|500μA@40V|SMB|2A|Schottky Diode|Schottky Diode|IO,VR(V),VF(V),IR,Package|Schottky Diode|

SS24B Schottky Diodes SMB

Download Datasheet Online Consultation

SURFACE MOUNT SCHOTTKY BARRIER DIODES


VOLTAGE RANGE: 20-100V

CURRENT: 2.0 A


Features

  • Schottky Barrier Chip

  • ldeally Suited for Automatic Assembly

  • Low Power Loss,High Efficiency

  • For Use in Low Voltage Application

  • Guard Ring Die Construction


Mechanical Data

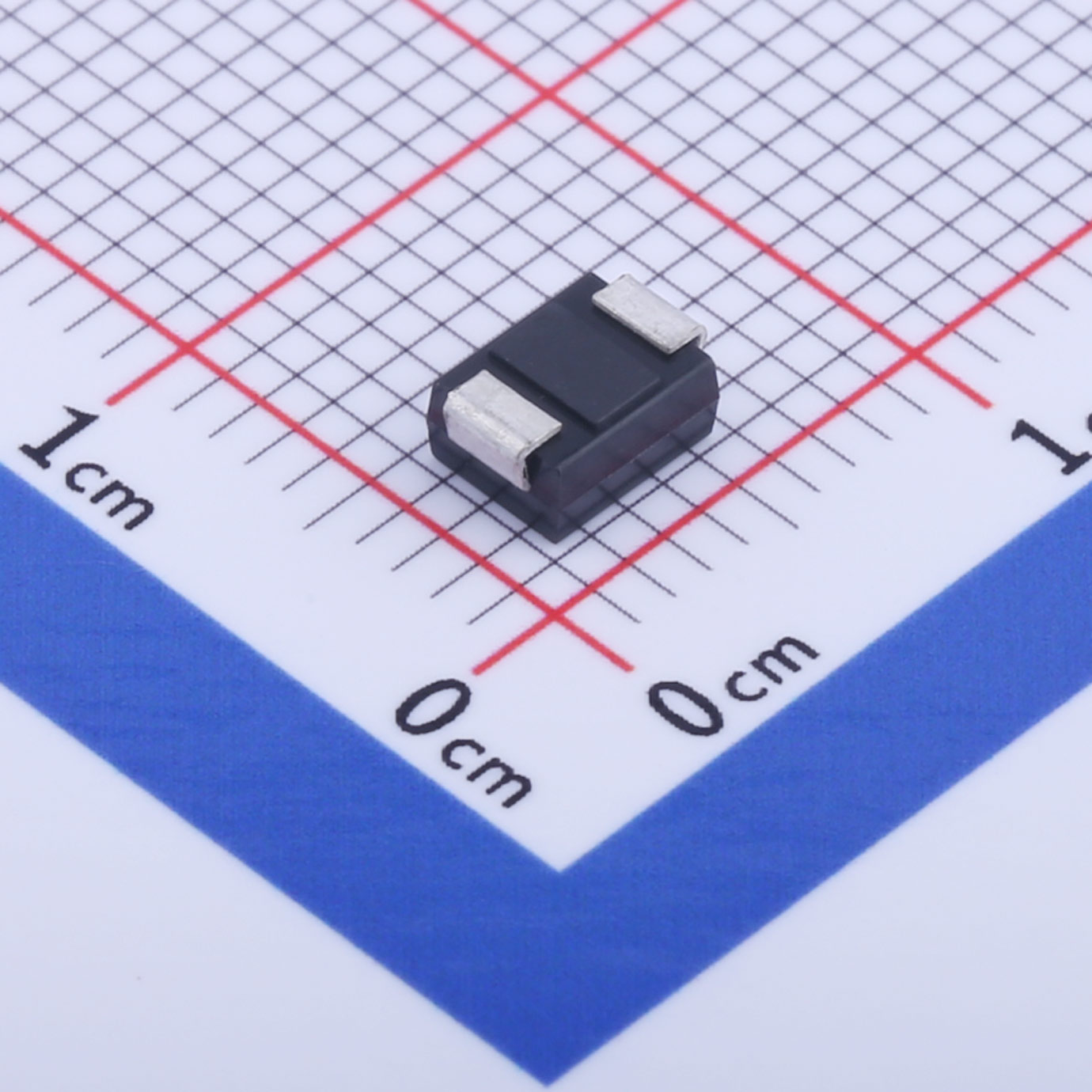

  • Case: SMB/DO-214AA, Molded Plastic

  • Terminals: Solder Plated, Solderable per MIL-STD-750, Method 2026

  • Polarity: Cathode Band or Cathode Notch

  • Marking: Type Number

  • Weight: 0.093 grams (approx.)




Name
Title
Description

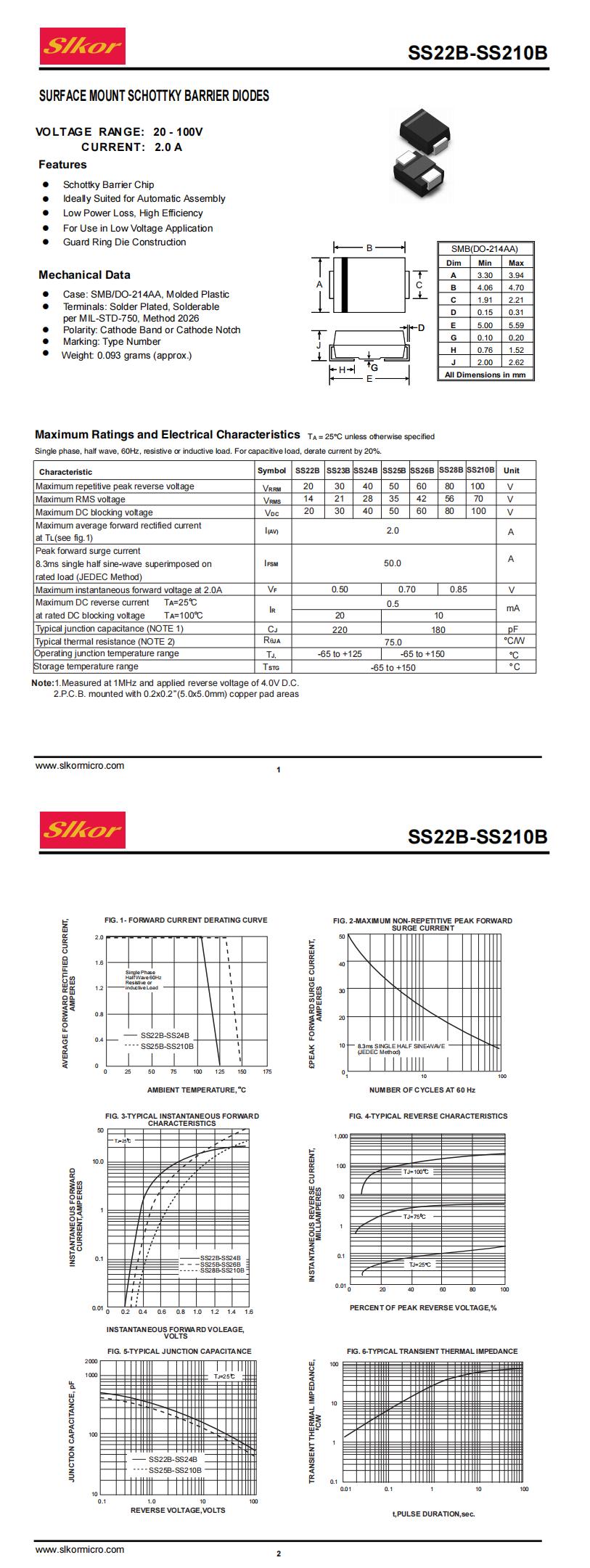

SS24B.pdf
-
Datasheet
