Cost-effective DS24W Schottky Barrier Rectifiers SOD-123FL Manufacturer

40V|550mV@2A|500μA@40V|SOD-123FL|2A|Schottky Diode|Schottky Diode|IO,VR(V),VF(V),IR,Package|Schottky Diode|

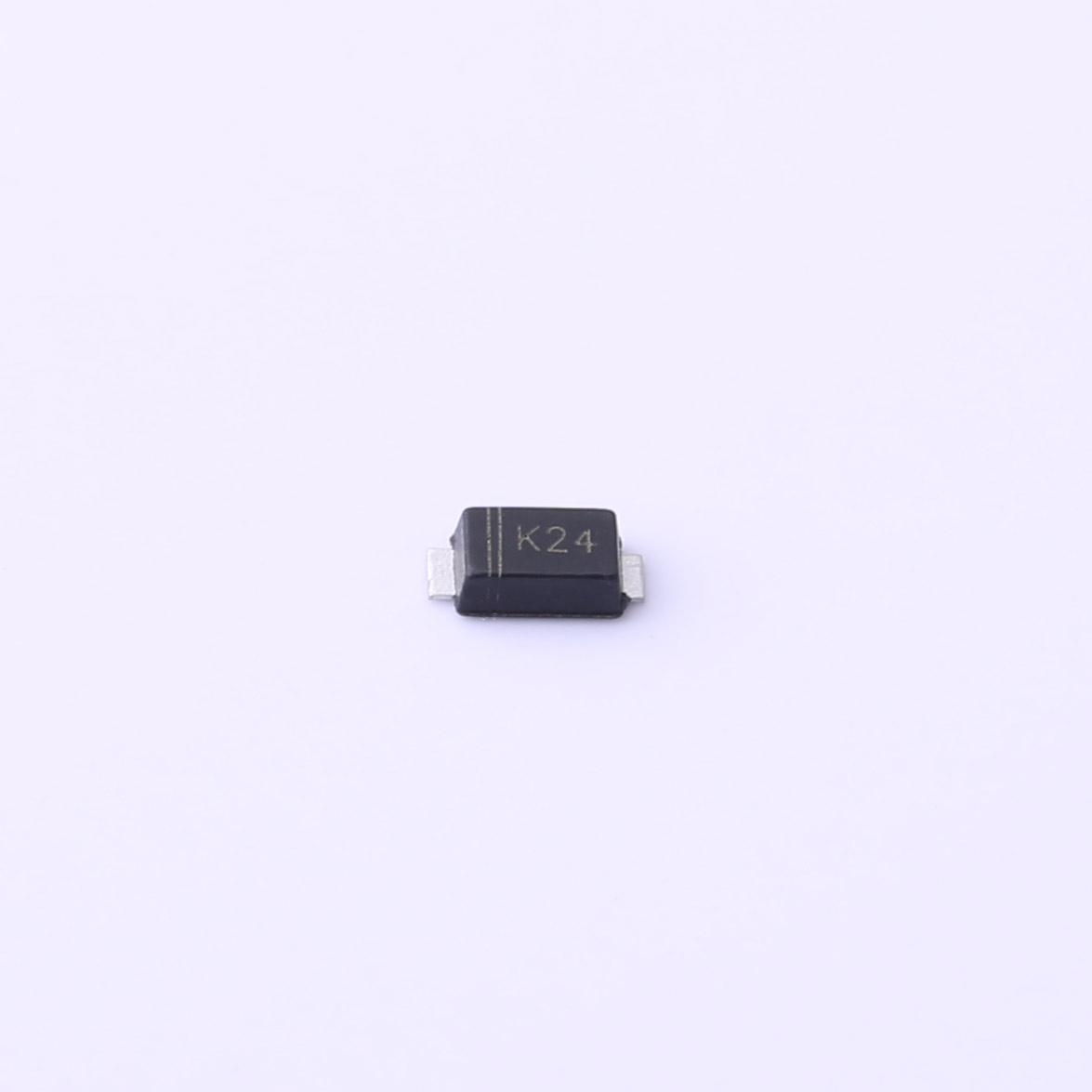

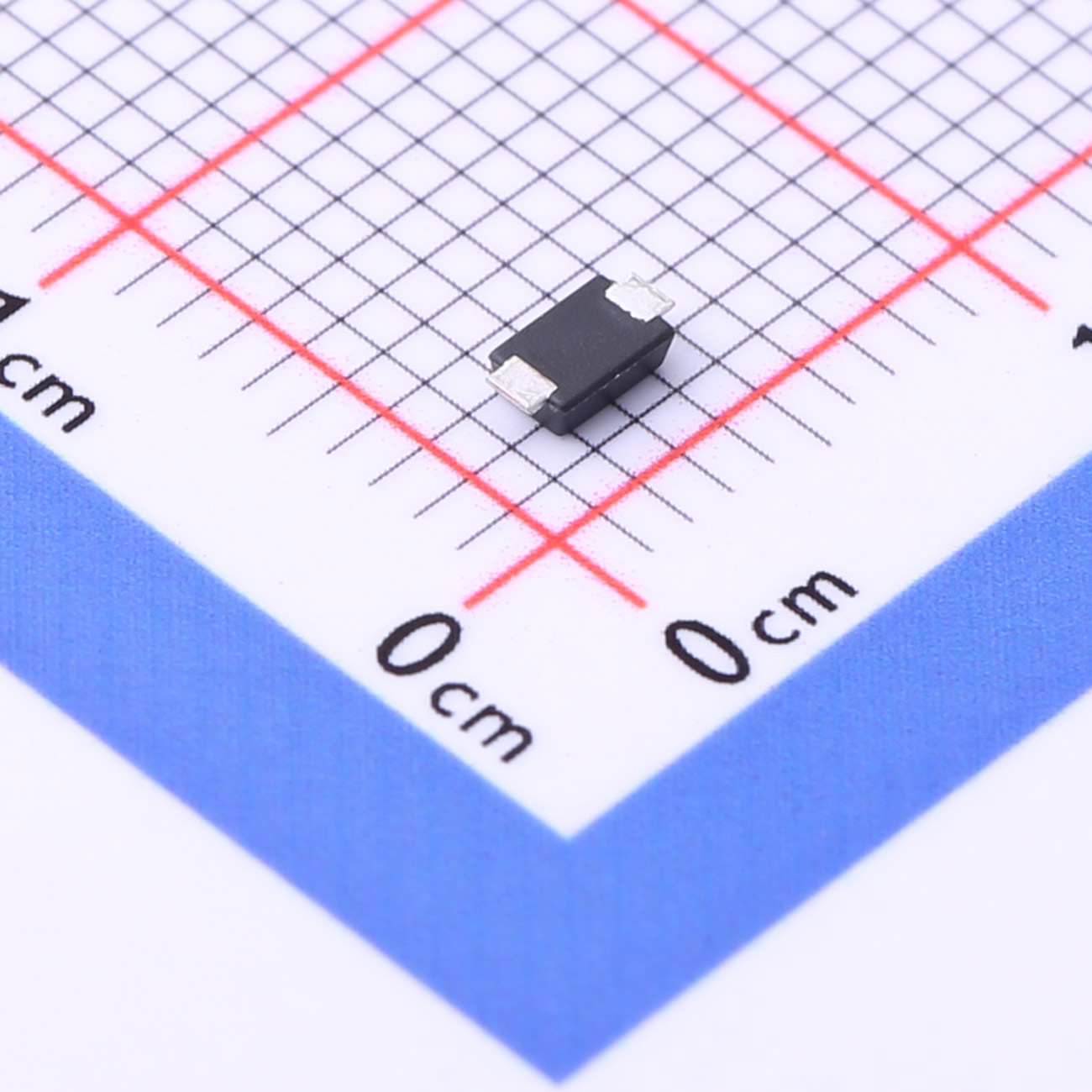

DS24W Schottky Barrier Rectifiers SOD-123FL

Download Datasheet Online Consultation

Surface Mount Schottky Barrier Rectifier


Reverse Voltage: 20 to 200 V

Forward Current: 2.0A


Features

  • Metal silicon junction, majority carrier conduction

  • For surface mounted applications

  • Low power loss, high efficiency

  • High forward surge current capability

  • For use in low voltage, high frequency inverters, free wheeling, and polarity protection applications


MECHANICAL DATA

  • Case: S0D-123Fl

  • Terminals: Solderable per MIL-STD-750, Method 2026

  • Approx.Weight: 15mg 0.00048oz





Name
Title
Description

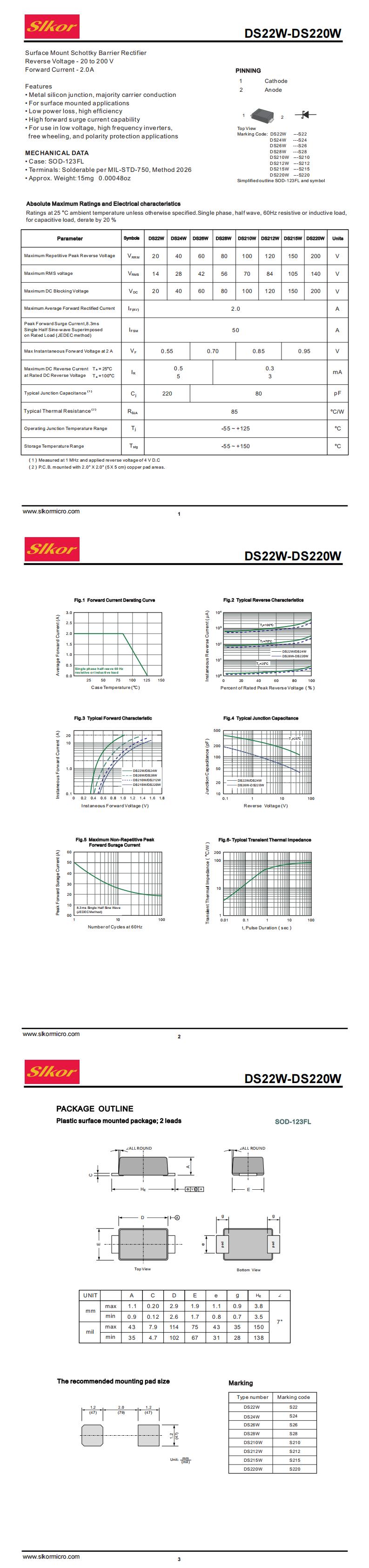

DS24W.pdf
-
Datasheet
