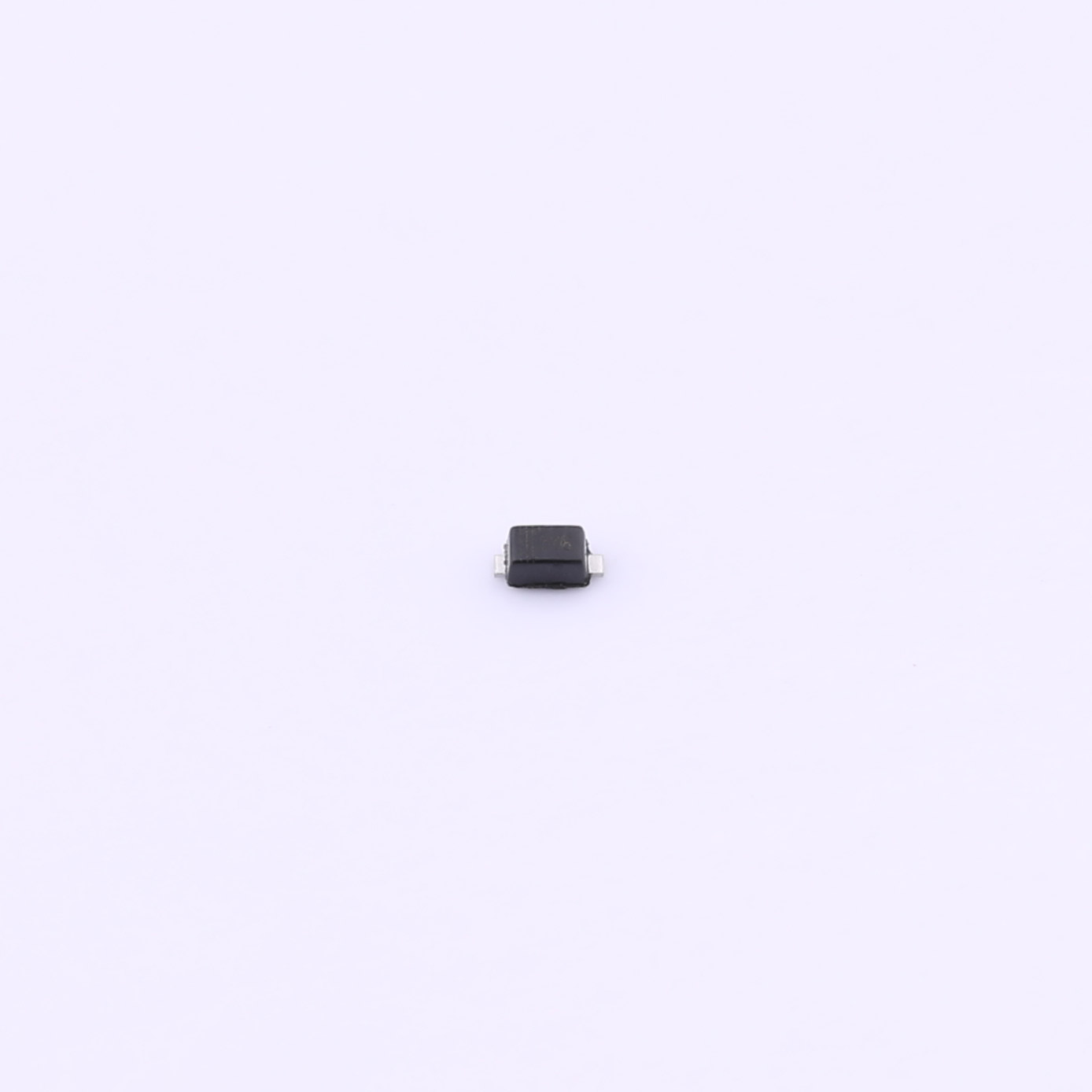

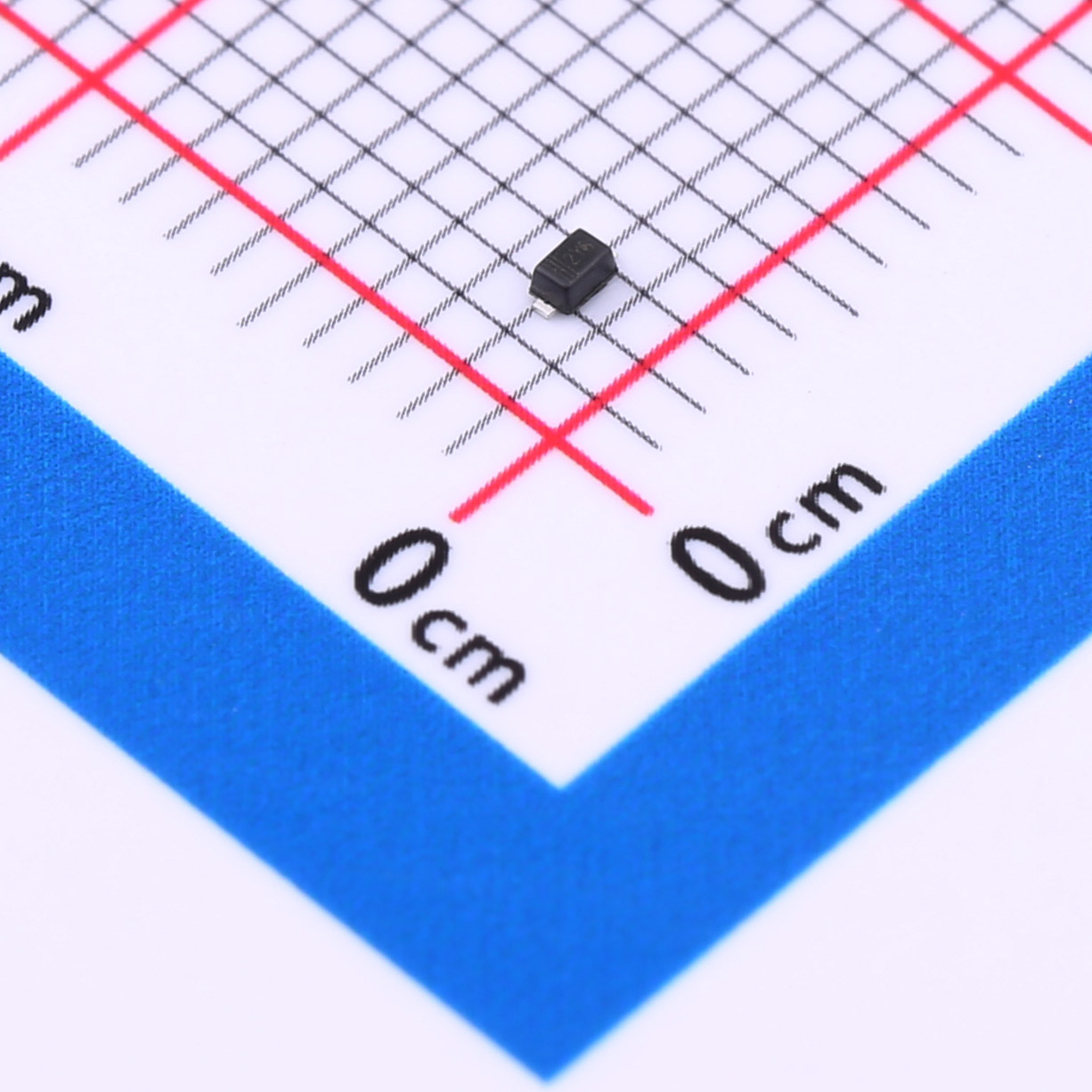

BZX584B18 Zener Diode SOD-523 Professional Supplier
The BZX584B18 Zener diode, offered in a compact SOD-523 package, is designed for reliable voltage regulation with a nominal Zener voltage of 18V at a test current of 5mA. This diode maintains a breakdown voltage range from 17.64V to 18.36V, ensuring consistent performance across varying conditions. It features a maximum dynamic impedance of 45? at 5mA and a maximum impedance of 225? at 1.0mA. Additionally, it exhibits a low reverse leakage current of 0.1μA at 12.6V. With a power dissipation capability of 150mW, this diode is suitable for various applications where space and efficiency are critical.
PD:150mW
VZ(Nom) @ IZT: 18V @ 5mA
VZ(Min) @ IZT: 17.64V @ 5mA
VZ(Max.) @ IZT: 18.36V @ 5mA
ZZT(Max) @ IZT: 45Ω @ 5mA
ZZK(Max) @ IZK: 225Ω @ 1.0mA
IR(Max) @VR: 0.1µA @ 12.6V
Package: SOD-523d efficiency are critical.
Plastic-Encapsulate Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BZX584B18 Zener diode, offered in a compact SOD-523 package, is designed for reliable voltage regulation with a nominal Zener voltage of 18V at a test current of 5mA. This diode maintains a breakdown voltage range from 17.64V to 18.36V, ensuring consistent performance across varying conditions. It features a maximum dynamic impedance of 45? at 5mA and a maximum impedance of 225? at 1.0mA. Additionally, it exhibits a low reverse leakage current of 0.1μA at 12.6V. With a power dissipation capability of 150mW, this diode is suitable for various applications where space and efficiency are critical.
Features
● Planar Die Construction
● 150mW Power Dissipation
● Zener Voltages from 2.4 – 39V
Applications
● Voltage reference circuits
● Over-voltage protection
● Clamping applications within compact electronic devices
