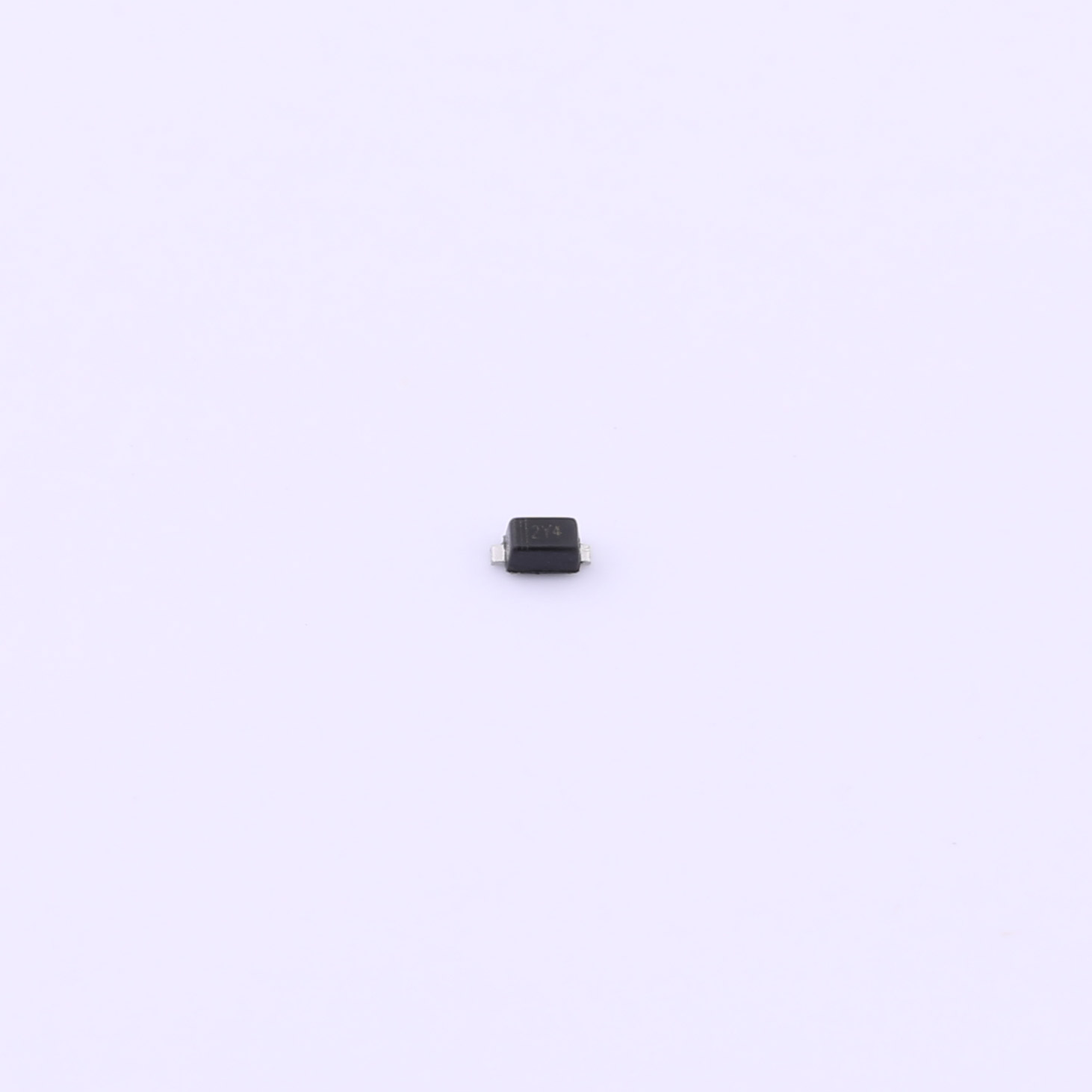

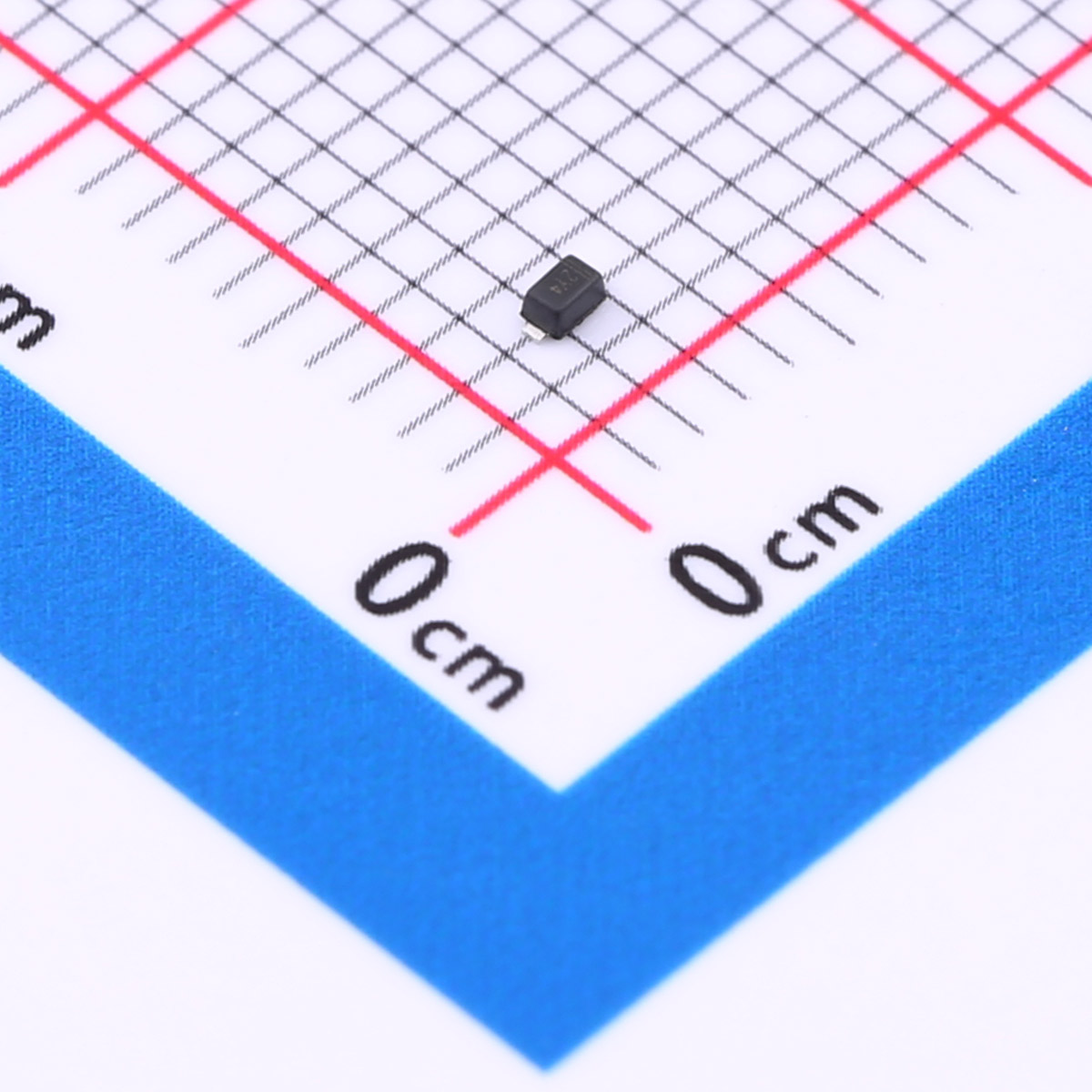

BZX584B15 Zener Diode SOD-523 Professional Supplier
The BZX584B15 Zener diode, housed in a compact SOD-523 package, is engineered for precise voltage regulation with a nominal Zener voltage of 15V at a test current of 5mA. It offers a stable breakdown voltage ranging from 14.70V to 15.30V, ensuring reliable performance in various electronic applications. This diode features a maximum dynamic impedance of 30? at 5mA and a maximum impedance of 200? at 1.0mA. It also boasts a very low reverse leakage current of 0.1μA at 10.5V. With a power dissipation capability of 150mW, it is well-suited for space-constrained and high-density designs.
PD:150mW
VZ(Nom) @ IZT: 15V @ 5mA
VZ(Min) @ IZT: 14.70V @ 5mA
VZ(Max.) @ IZT: 5.3V @ 5mA
ZZT(Max) @ IZT: 30Ω @ 5mA
IR(Max) @VR: 0.1µA @ 10.5V
Package: SOD-523
Plastic-Encapsulate Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BZX584B15 Zener diode, housed in a compact SOD-523 package, is engineered for precise voltage regulation with a nominal Zener voltage of 15V at a test current of 5mA. It offers a stable breakdown voltage ranging from 14.70V to 15.30V, ensuring reliable performance in various electronic applications. This diode features a maximum dynamic impedance of 30? at 5mA and a maximum impedance of 200? at 1.0mA. It also boasts a very low reverse leakage current of 0.1μA at 10.5V. With a power dissipation capability of 150mW, it is well-suited for space-constrained and high-density designs.
Features
● Planar Die Construction
● 150mW Power Dissipation
● Zener Voltages from 2.4 – 39V
Applications
● Voltage reference circuits
● Clamping circuits
● Protection devices in compact electronic systems
