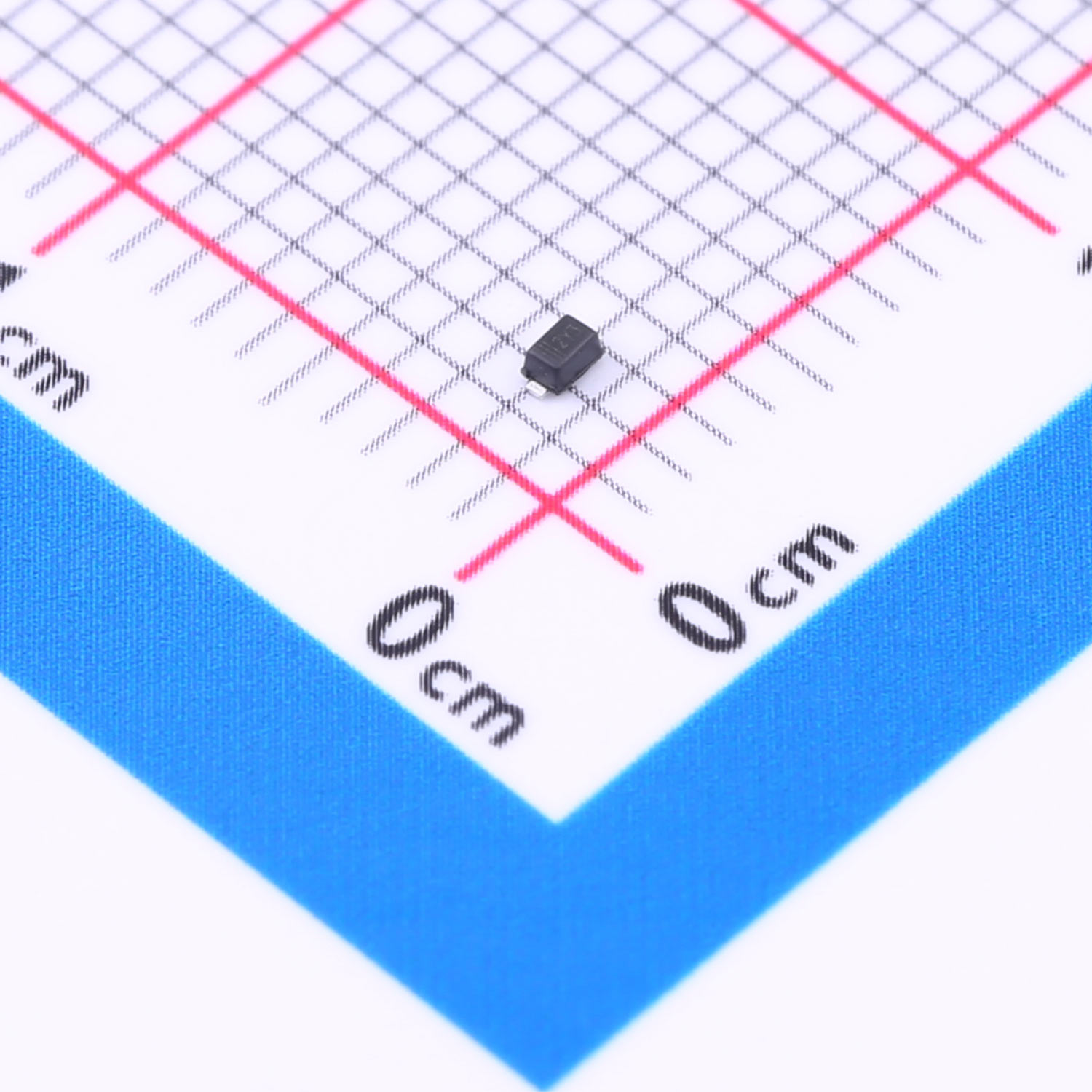

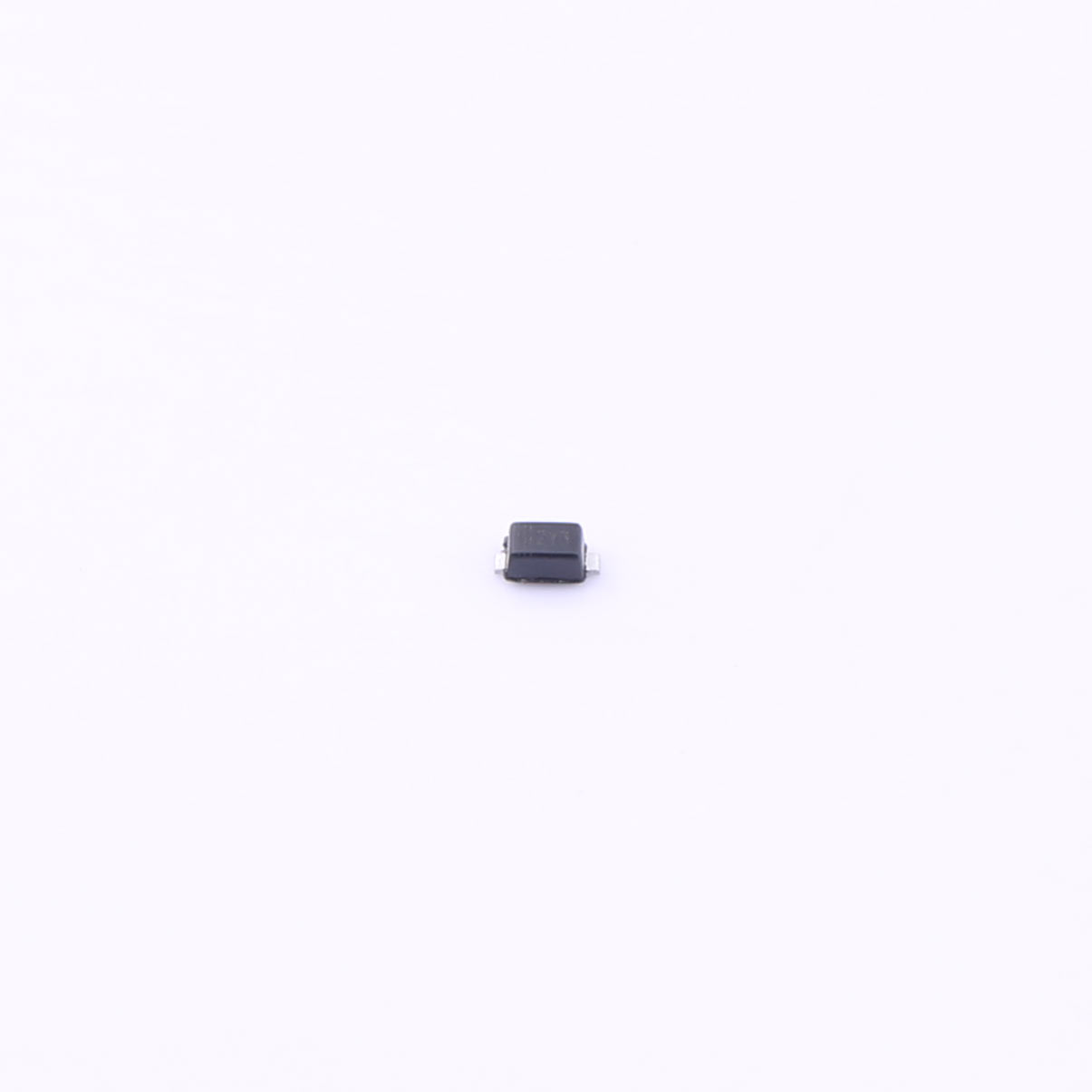

BZX584B10 Zener Diode SOD-523 Professional Supplier
The BZX584B10 Zener diode, encapsulated in a compact SOD-523 package, is designed for precise voltage regulation with a nominal Zener voltage of 10V at a test current of 5mA. It operates within a breakdown voltage range of 9.80V to 10.20V, ensuring accurate voltage stabilization. This diode features a maximum dynamic impedance of 20? at 5mA and a maximum impedance of 150? at 1.0mA. With a low reverse leakage current of 0.2μA at 7V and a power dissipation capability of 150mW, it is well-suited for space-constrained applications.
PD:150mW
VZ(Nom) @ IZT: 10V @ 5mA
VZ(Min) @ IZT: 9.80 V @ 5mA
VZ(Max.) @ IZT: 10.2V @ 5mA
ZZT(Max) @ IZT: 20Ω @ 5mA
ZZK(Max) @ IZK: 150Ω @ 1.0mA
IR(Max) @VR: 0.2µA @ 7V
Package: SOD-523
Plastic-Encapsulate Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BZX584B10 Zener diode, encapsulated in a compact SOD-523 package, is designed for precise voltage regulation with a nominal Zener voltage of 10V at a test current of 5mA. It operates within a breakdown voltage range of 9.80V to 10.20V, ensuring accurate voltage stabilization. This diode features a maximum dynamic impedance of 20? at 5mA and a maximum impedance of 150? at 1.0mA. With a low reverse leakage current of 0.2μA at 7V and a power dissipation capability of 150mW, it is well-suited for space-constrained applications.
Features
● Planar Die Construction
● 150mW Power Dissipation
● Zener Voltages from 2.4 – 39V
Applications
● Voltage regulation circuits
● Clamping applications
● Over-voltage protection
