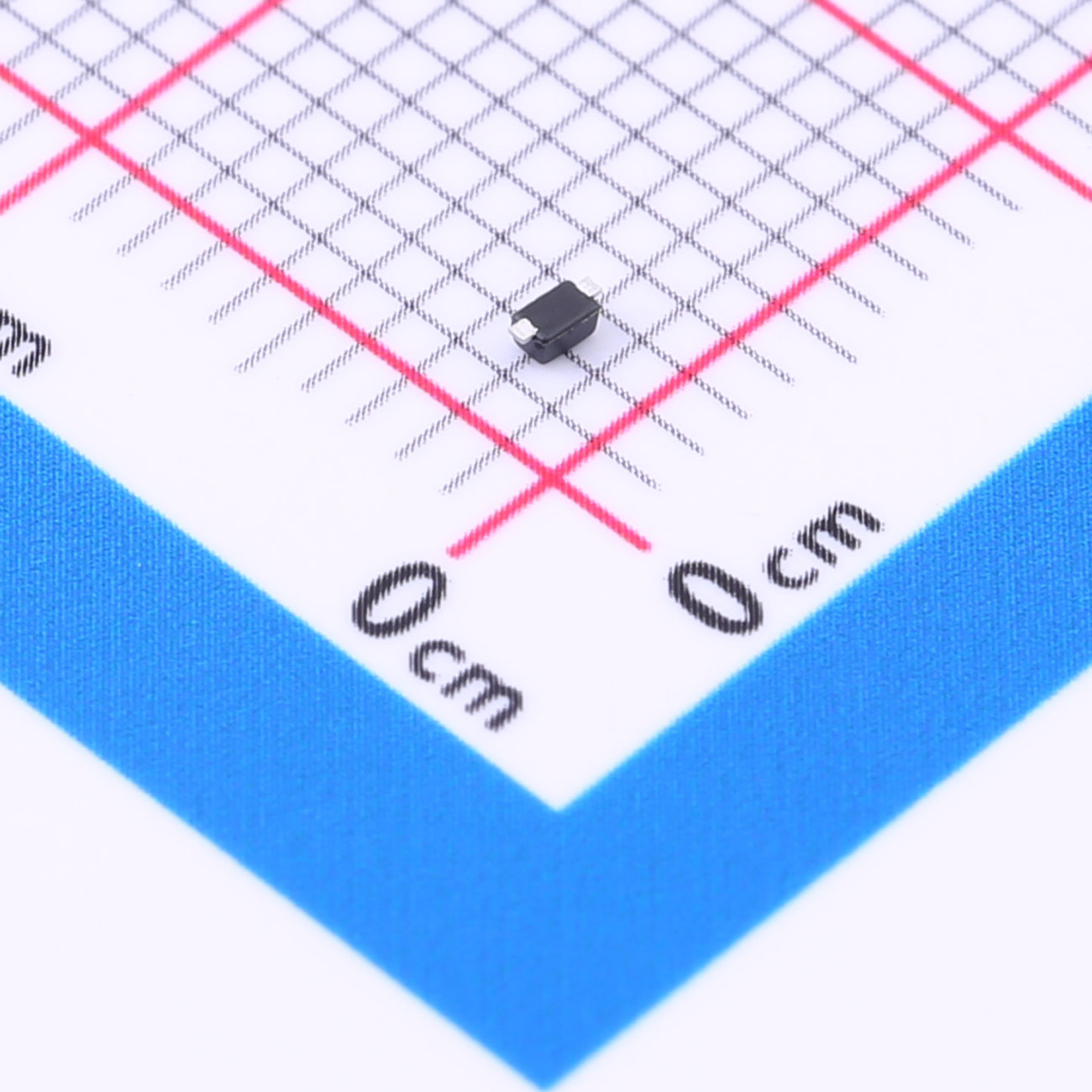

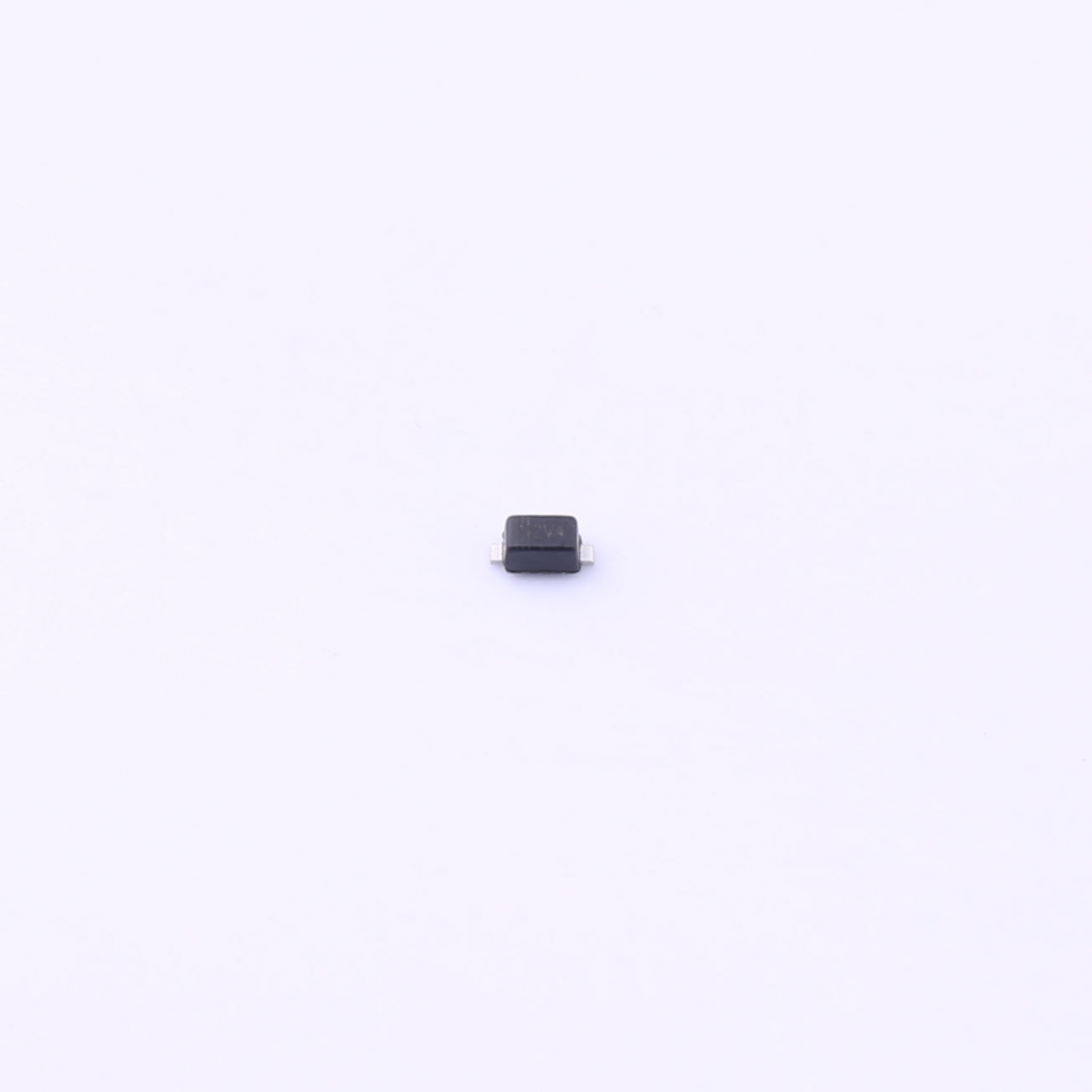

BZX584B3V3 Zener Diode SOD-523 Professional Supplier
The BZX584B3V3 Zener diode, presented in a compact SOD-523 package, is designed for precise voltage regulation with a nominal Zener voltage of 3.3V at a test current of 5mA. It operates within a breakdown voltage range of 3.23V to 3.37V, ensuring stable performance. The diode features a maximum dynamic impedance of 95? at 5mA and a high impedance of 600? at 1.0mA. It has a low reverse leakage current of 5μA at 1V, supporting reliable and consistent operation. The diode supports a power dissipation capacity of 150mW.
PD:150mW
VZ(Nom) @ IZT: 3.3V @ 5mA
VZ(Min) @ IZT: 3.23V @ 5mA
VZ(Max.) @ IZT: 3.37V @ 5mA
ZZT(Max) @ IZT: 95Ω @ 5mA
ZZK(Max) @ IZK: 600Ω @ 1.0mA
IR(Max) @VR: 5µA @ 1V
Package: SOD-523
Plastic-Encapsulate Diodes
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The BZX584B3V3 Zener diode, presented in a compact SOD-523 package, is designed for precise voltage regulation with a nominal Zener voltage of 3.3V at a test current of 5mA. It operates within a breakdown voltage range of 3.23V to 3.37V, ensuring stable performance. The diode features a maximum dynamic impedance of 95? at 5mA and a high impedance of 600? at 1.0mA. It has a low reverse leakage current of 5μA at 1V, supporting reliable and consistent operation. The diode supports a power dissipation capacity of 150mW.
Features
● Planar Die Construction
● 150mW Power Dissipation
● Zener Voltages from 2.4 – 39V
Applications
● Precision reference circuits
● Voltage clamping
● Protection circuits in compact electronic devices
