Description

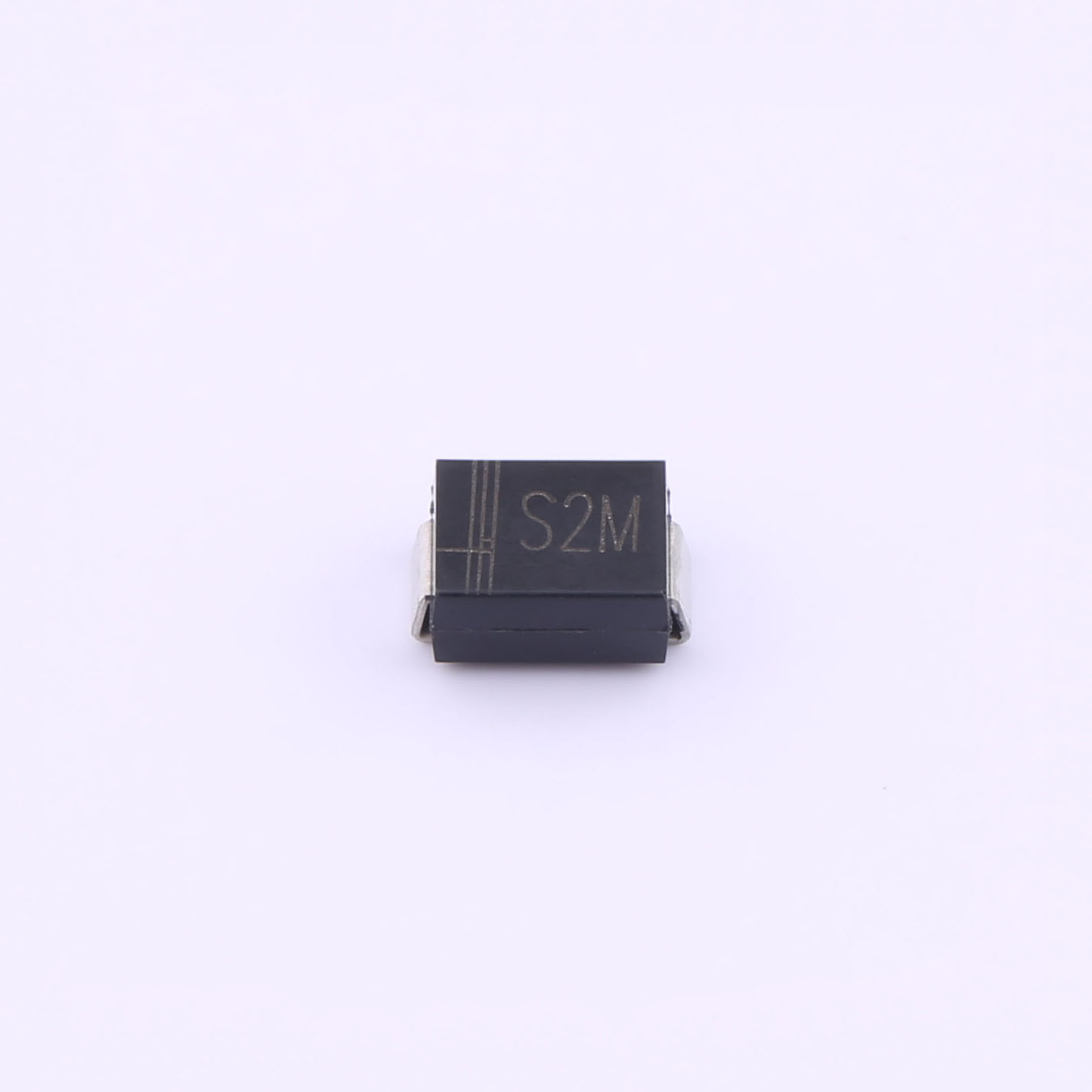

The S2MB is a high-performance general-purpose rectifier diode designed for efficient and reliable operation in a variety of electronic applications. With a peak reverse voltage (VRRM) rating of 1000V and a forward current (IO) handling capacity of 2A, this diode facilitates effective conversion of alternating current (AC) to direct current (DC) with minimal power loss. It features a low forward voltage drop (VF) of 1.15V and a low reverse leakage current (IR) of only 5μA, ensuring precise signal handling and minimal current leakage in sensitive electronic circuits. The diode is packaged in SMB format, which is compact and suitable for surface-mount applications, enhancing its versatility in modern electronic designs.

Features

● For surface mounted applications

● Low profile package

● Built-instrain relief ideal for automated placement

● Glass Passivated chip junction

● High temperature soldering guaranteed 250℃/10 second atterminals

Mechanical Data

● Case:JEDEDDO-214 AA molded plastic over glass passivated chip

● Terminals:Solderplated, SolderableperMIL-STD-750, method2026

● Polarity:Color band denotes cathode end

● Weight: 0.002ounce, 0.064gram

Maximum Ratings And Electrical Characteristics

Ratings at 25℃ ambient temperature unless otherwise specified
