Slkor alternative equivalents to Texas Instruments

Description

The SL27511A is a 4A peak source and 8A peak sink drive single-channel, high-speed, low-side gate driver, capable of effectively and safely driving MOSFETs, IGBTs and emerging WBG power switches. Low propagation delay and compact SOT- 23 package enable fast switching at hundreds of kHz. It is very suitable for server and telecom power supply’s synchronous rectification driving, where synchronous MOSFET’s dead time accuracy directly impacts converter’s efficiency. Wide VDD operating range from 4.5V to 20V enables effective driving with MOSFET or GaN power switches. Integrated UVLO protection ensures output held at low under abnormal conditions.

The independent inputs range from -5V to 24V ensure robust operation with undershoot or overshoot induced by parasitic inductances. The input thresholds are compatible with TTL input.

Characteristics

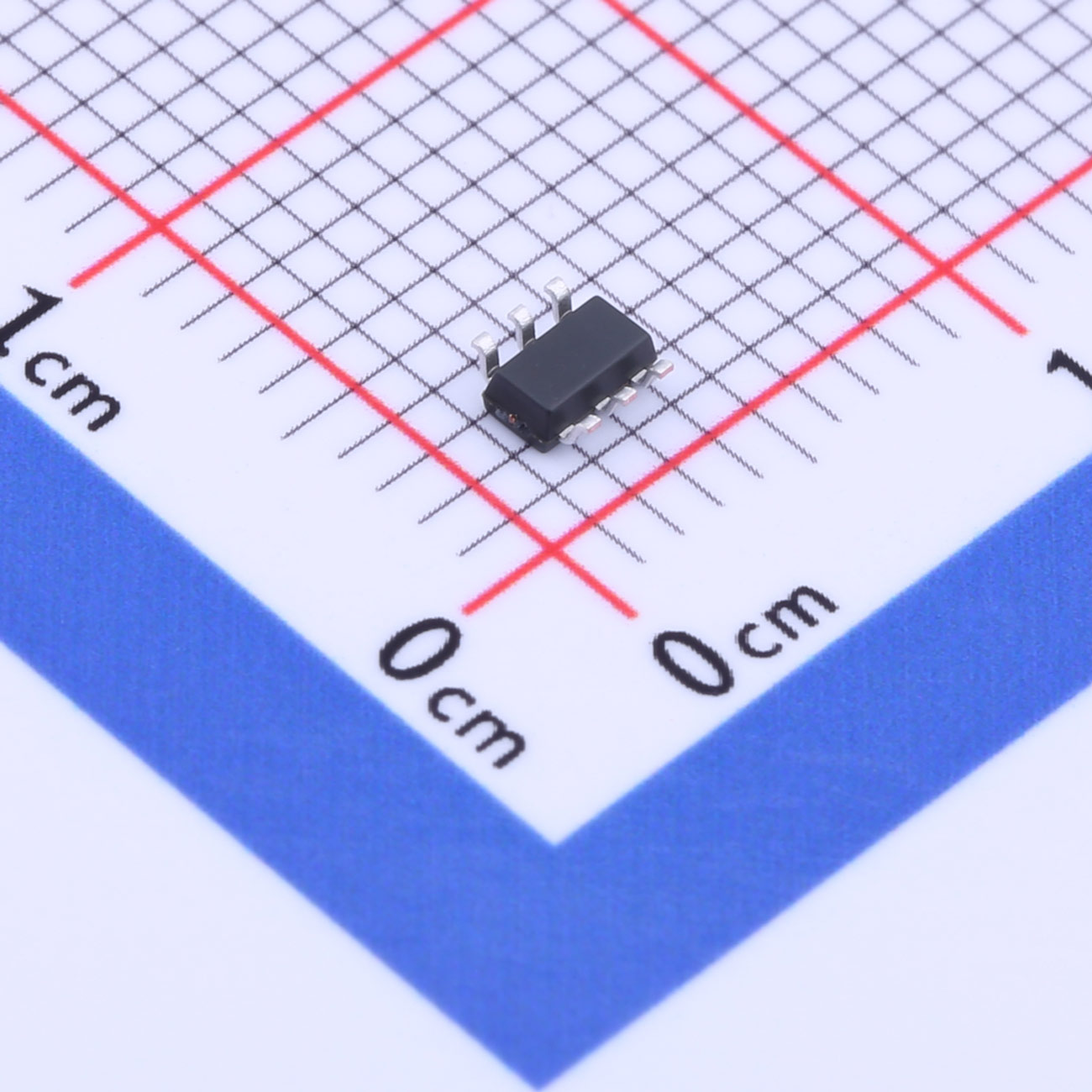

● 6-pin SOT-23

● 4A peak source and 8A peak sink drive current

● Wide VDD range up to 24V

● VDD operation from 4.5V to 20V with UVLO protection

● Dual inputs, either inverting or non-inverting input can be used. Unused input can be used as Enable or Disable control

● Ability to handle negative (-5V) input

● TTL and CMOS compatible input

● Low propagation delays (typical less than 20ns)

● Output held low when floating inputs

● Split output for independent turn on and turn off speed adjustment

● Operating temperature range -40℃ to 125℃

Applications

● Power Tools

● Motor Control

● AC/DC and DC/DC converters

● Server and Telecom rectifiers

● EV/HEV inverters and DC/DC converters

● PV boosters and inverters

● UPS

● Emerging Wide Band-Gap Power Devices
