Slkor alternative equivalents to Texas Instruments.

Description

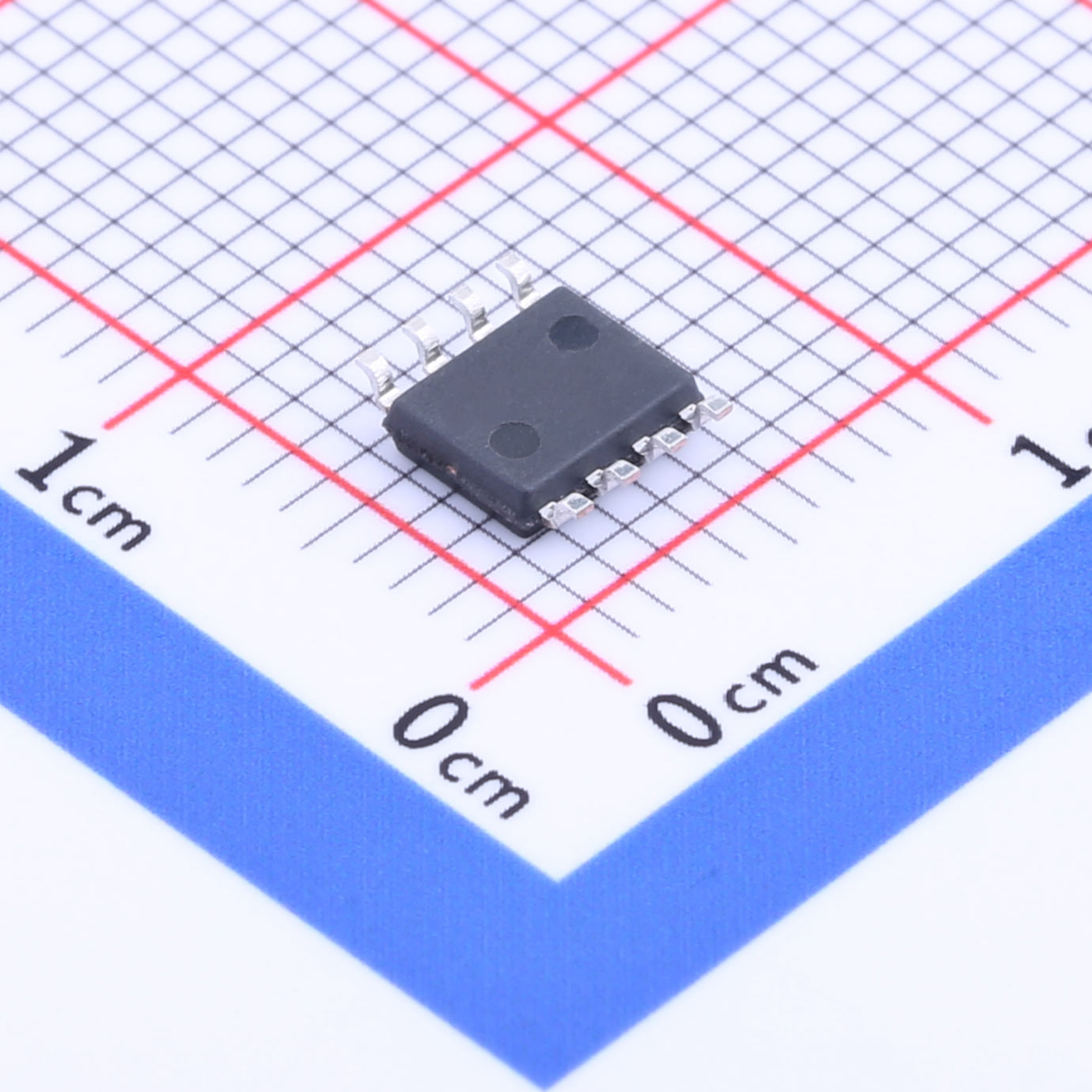

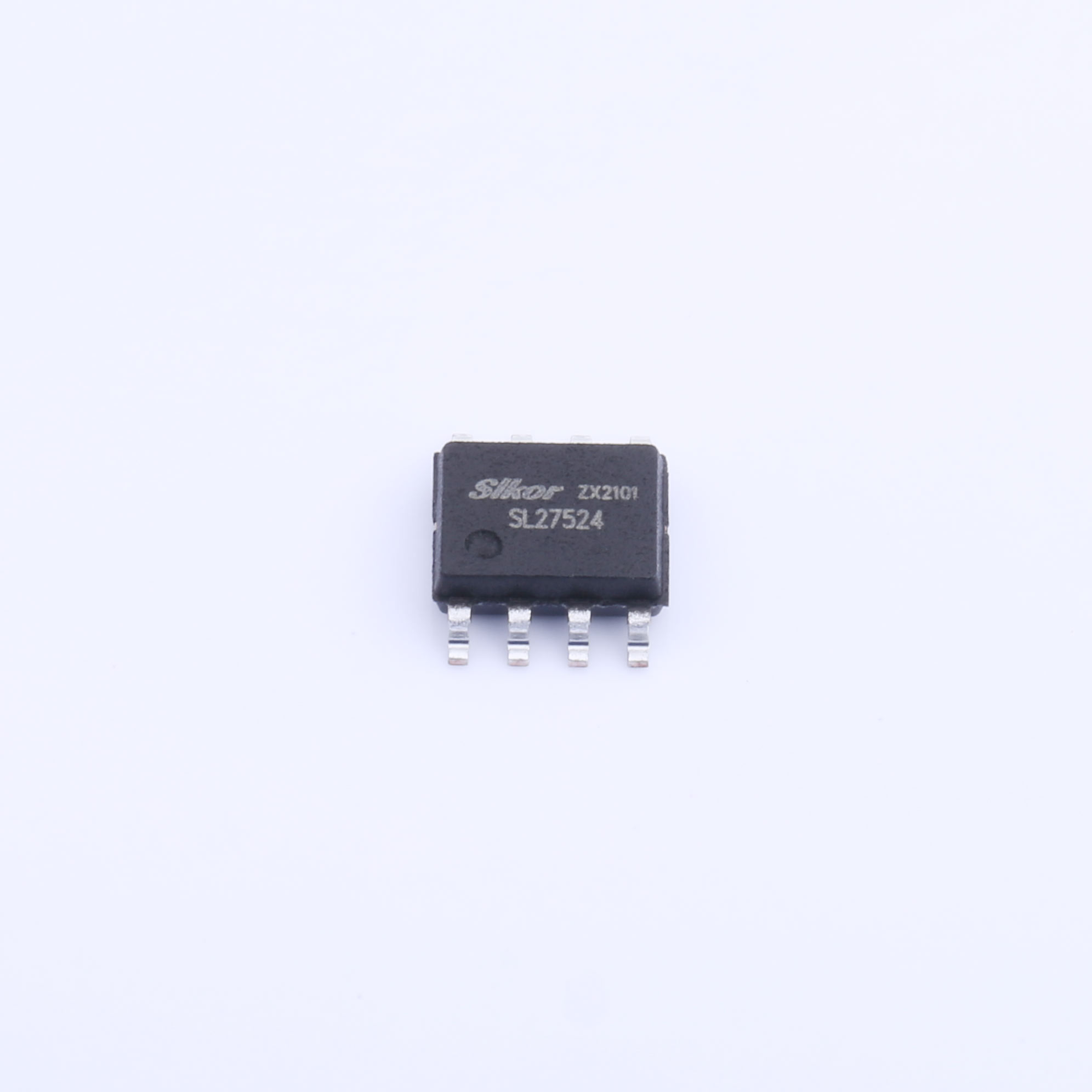

● The SL27523/4/5 are dual 4A high-speed low-side gate driver, MOSFETs and IGBTs can be driven efficiently and safely. low propagation delay late and mismatch, as well as the compact SOP-8 package, make the switching frequency of MOSFETs can reach hundreds of kHz. this chip Ideal for synchronous rectification drives for server and communication power supplies, In this case, the dead time of the synchronous MOSFET directly affects the transformer. Converter efficiency. The driver can increase the output through the parallel connection of two channels.Out the drive current. Input pin threshold voltages are based on TTL levels and-5V to 20V input.

● Wide range of VDD supply voltages from 4.5V to 20V to efficiently drive MOSFET or GaN power devices. Integrated UVLO protection. It is guaranteed to keep the output low under abnormal conditions.

● The -5V to 24V independent input pin voltage range effectively ensures that Stable operation with overshoot due to parasitic inductance. Input the voltage threshold of the pin is also compatible with TTL level input.

Applications

● AC/DC and DC/DC converter

● Server and rectifier for communication equipment

● EV/HEV inverter and DC/DC converter

● PV voltage rise and inverter

● UPS

● motor control

● For Emerging Wide Bandgap Power Device Drivers

Characteristics

● Dual-channel independent-grid driving

● 4A peak sourcing current and sinking current

● VDD power supply with wide ranges as high as 25V

● Independent enabling input

● Dual channels can be used in parallel for high current drive

● Inverting and non-inverting inputs optional

● VDD under-voltage protection

● Compatible with TTL and CMOS input levels

● low propagation delay

● 1ns typical delay matching between two channels

● When the input is floating, the output is low

● -40oC to 125oC operating temperature range

Applications

● Industrial Power Supplies
● Consumer Electronics
● Automotive Systems
● Communication Devices
● Portable Devices
