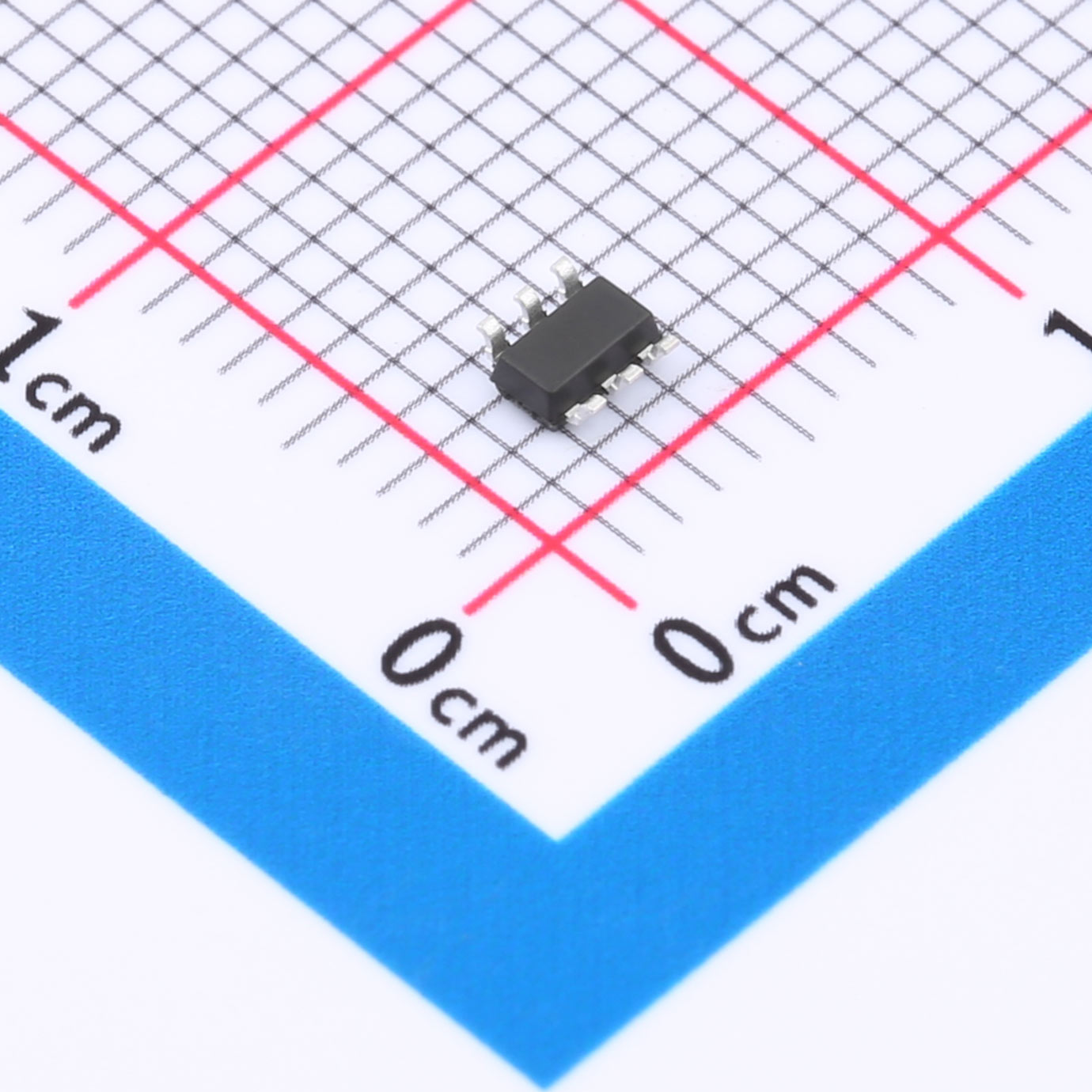

Factory Direct SL27531 Low dropout Voltage Regulator SOT-23-6
The SL27531 series single-channel, highspeed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SL27531 series products can source and sink high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 21 ns. The SL27531 can provide 5 A source, 5 A sink peak-drive current capability at 18 VVDD supply.
VDD(V): 4.5V
IO(A): 5A
IDDq(A): 50μA
TA(℃): 125℃
Package: SOT-23-6
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL27531 series single-channel, high speed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SL27531 series products can source and sink high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 21 ns. The SL27531 can provide 5 A source, 5 A sink peak-drive current capability at 18 VVDD supply.
Features
● Low-cost gate-driver device offering superior
● replacement of NPN and PNP discrete solutions
● 5 A peak source and 5 A peak sink current
● Fast propagation delay (21 ns typical)
● Fast rise time (9 ns typical)
● Fast fall time (8 ns typical)
● 13.5V to 30V single supply range
● Under-voltage lockout
● TTL and CMOS compatible input logic threshold
● Dual input design (choice of an inverting or noninverting driver configuration)
● Output held low when input pins are floating
● Operating temperature range of -40℃ to 125℃
● SOT23-6, package
Application
● Automotive electronics
● Personal computers
● White goods appliances
● Industrial control products, electronic medical devices
