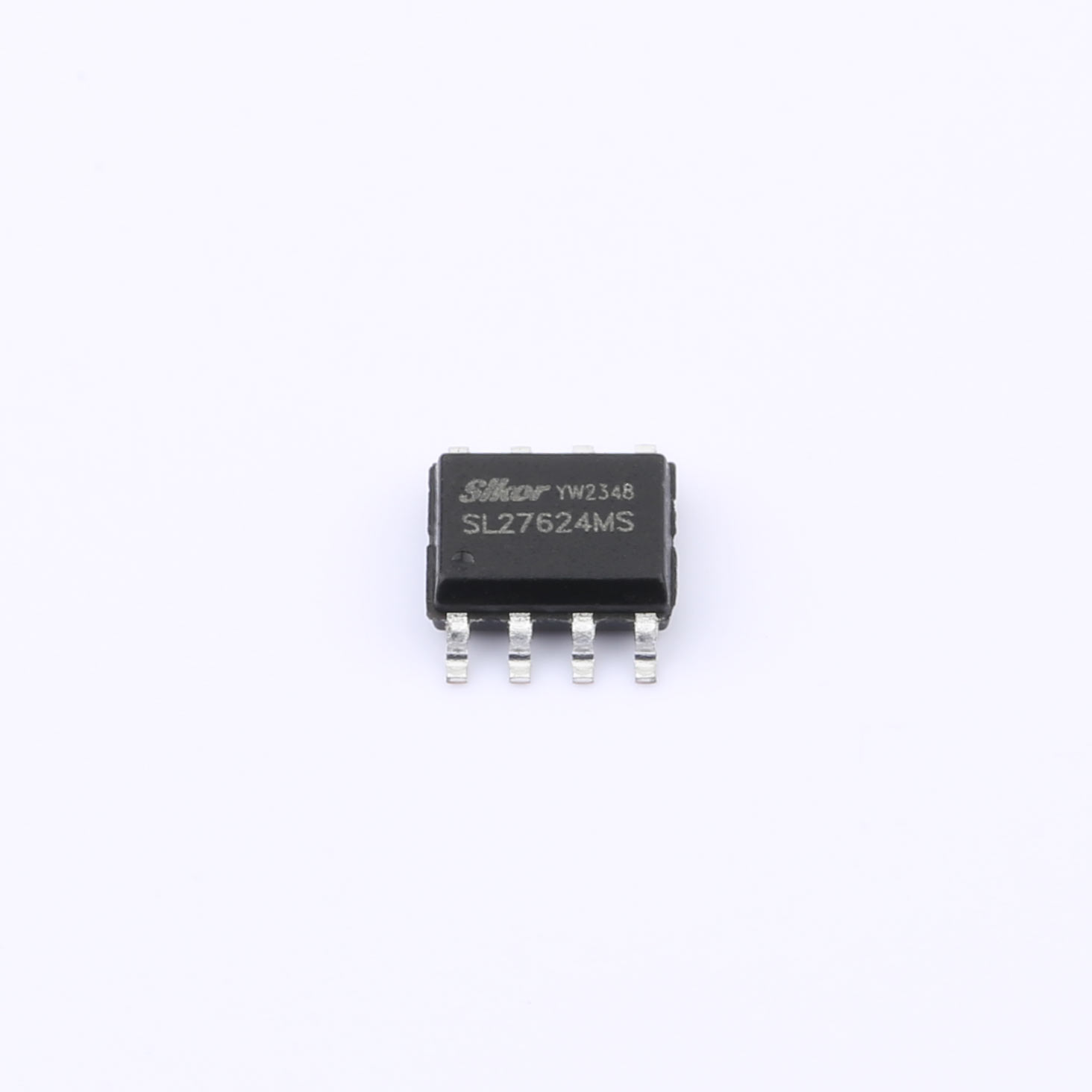

Factory Direct SL27624MS Low dropout Voltage Regulator SOP-8
The SL27624 is a dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SL27624 can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 20ns. The SL27624 provides 5.0 A source, 5.0 A sink peak-drive current capability at 12V VDD supply.
VDD(V): 4.5V
IO(A):3.6mA
IDDq(A): 810μA
TA(℃): 125℃
Package: SOT-8
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
The SL27624 is a dual-channel, high-speed, low-side gate drivers that can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SL27624 can source and sink high peakcurrent pulses into capacitive loads offering rail-to-rail
drive capability and extremely small propagation delay, typically 20ns.
The SL27624 provides 5.0 A source, 5.0 A sink peak-drive current capability at 12V VDD supply.
Features
● Two independent gate drive channels
● 5.0 A peak source and 5.0 A peak sink current drive capability
● Fast propagation delay (20ns typical)
● Fast rise and fall time (7ns and 6ns typical)
● 4.5 to 30V single supply range
● Under-voltage lockout
● TTL and CMOS compatible input logic threshold
● Ability to handle negative voltages (-5V) at inputs
● 2ns typical delay matching between two channels
● Two outputs are paralleled for higher drive current
● Outputs held in low when inputs floating
● Operating temperature range of -40°C to 150°C
● SOP8 and MSOP8-EP package options
Application
● Switching mode power supplies
● DC-to-DC converters
● Motor Control, solar power
● Gate drive for emerging wide band-gap power devices such as GaN
